NVK Home Security Surveillance Systems

NVK Home Security Surveillance Systems

  • NVK Home Security Surveillance Systems
  • NVK Home Security Surveillance Systems
  • NVK Home Security Surveillance Systems
NVK Home Security Surveillance Systems
Product Details:
Place of Origin: Shenzhen, China
Brand Name: Fortunemount
Certification: ce, fcc, rohs
Model Number: NVK-B5004B
Payment & Shipping Terms:
Minimum Order Quantity: 200
Delivery Time: 4 weeks
Payment Terms: T/T ;50% prepayment upon PO and balance to be paid before shipment
Supply Ability: 50K pcs / Month
MOQ for OEM / ODM :: 500 pcs
Contact Now
Detailed Product Description
Product Name: Home Security Surveillance Systems Operating System: Embedded LINUX Operating System
Sensor: 1.0 Megapixel CMOS Sensor Size: 1/3 Inch
Minimum Illumination: 0.15 LUX Video Compression Format: H.264
High Light:

home security surveillance camera

,

security surveillance systems for home

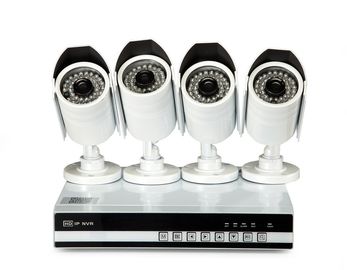

4CH 720P NVK Kits Home Security Surveillance Systems NVK-B5004B



Wifi NVR Kits Features:

· 4ch video input

· Support Wifi, Wifi NVR, Wifi Camera

· HD NVR Kits, 720P NVR, 720P Camera

· Support Mobile Viewing, include Iphone & Android OS

· Support P2P

· Camera Support 720 option



NVK Home Security Surveillance Systems 0

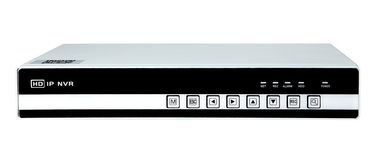

NVR Features:

· Operating System: LINUX

· Video Input:4CH 720P/4CH 960H IP camera

· Video Output: HDMI 1CH out; VGA 1CH out

· Audio Input/Output: 4  Audio input, 1CH RCA out ,RS485

· NVR can connect with IP camera and network video server

· live view, record, search file, backup

· Digital zoom (both in live view and playback)

· Resolution: 1080P(1920×1080)30fps/960P(1280×960)30fps/720P(1280×720)30fps

· Playback: Max suport 4ch960P or 2ch 1080P synchronously playback

· Support Onvif 2.0, RS485, Dual stream, 2 USB 2.0 port,  WIFI

· Support iPhone, Windows Mobile, BlackBerry, Symbian, Android

· 1SATA interface  Up to 2TB capacity





Model

NVR-B5104

Operating System

Embedded LINUX operating system

Image Code Control

Image code quality adjustable,

variable bitstream and constant bitstream optional

Dual Stream

Each channel can set main stream and sub stream

Video Standard

1080P(1920×1080)@30fps

720P(1280×720)@30fps

Monitoring Image Quality

1080P(1920×1080)

720P(1280×720)

Image Motion Detection

Each screen can set mutiple detection areas

and set 6-level sensitivity

Recording Playback Quality

Any 4ch 1080P/720P playback simultaneously

Region Cover

Every channel can set 4 cover regions

Recording Mode

Support manual , auto, dynamic detection,

alarm trigger record mode

Backup Way

Support U disk, USB mobile HDD, USB DVD-RW .

network storage and backup

Operation Way

Mouse, remote control, front panel, keyboard controller

Local Login

User name and password

Recording Storage

Local HDD, network

External

Ports

Video Input

1×(1920*1080) +3×(1280*720) IP camera

Audio Input

4ch network audio input

Video Output

1ch VGA+1ch HDMI

Audio Output

1ch BNC auxiliary output

Network Port

1 RJ45,10M/100M/1000M self-adaptive LAN port

RS485 Port

Full duplex standard 485 port,

support 19 kinds of PTZ protocols

USB Port

3 USB 2.0 ports(one on front panel, two on rear panel)

Alarm Input

4ch

Alarm Output

1ch

Wireless Port

3G,WIFI

HDD

HDD Port

2 SATA HDD port/1 SATA+1 E-SATA

MAX Capacity

Each port supports MAX 3TB HDD

Mobile Surveillance

Support( iPhone, Windows Mobile, BlackBerry, Symbian, Android) smart phone

Power Supply

12V4A

Power Consumption

≤25(without HDD)

Working Temperature

-10℃~+55℃

Working Humidity

10%-90%

Dimension

Equipment: 350mm×240mm×70mm,

Packing: 409mm×365mm×129mm

Wight(without HDD)

N.W.: 1.7Kg;

with packing:2.89Kg

Otside Carton

5pcs/carton.

675mm×425mm×385mm;

weight: 15.22 Kg.

Istallation Way

Desktop installation


NVK Home Security Surveillance Systems 1

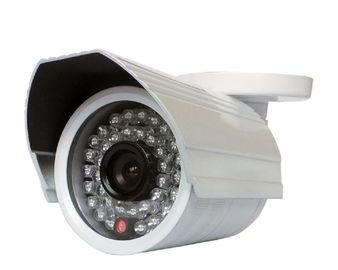

Wireless IP Camera Features:

• H.264 compression format, MJPEG Baseline
• 1.0 Megapixel Resolution,Support 720P(1280*720)
• Dual Stream, resolution, bit rate adjustable
• 4mm 2Mega Pixel Lens
• Freely control zoom by software(PC or Smart phone)
• Built-in IR-CUT, auto-switch day and night, IR Range 20m
• Motion detection recording , alert with snapshots via email (without SSL)
• Build-in Privacy Mask , image snapshot , Title OSD , DDNS
• Support RTSP Compatible with IMAC Media PlayerOnvif Compliant, Support NVR from Milestone/Axxon/NUUO/geovision/synology/Hikvision/Dahua/Kodak
• Support iPhone/iPad/Android Smart Phone
• Support IE6.0~8.0, Firefox, Google chrome browser
• Support up to 10 users online simultaneously
• IP66 Rated Waterproof & Vandalproof, Outdoor Use
• Free CMS Software, paid Software for optional
• Support P2P,ONVIF 2.3,Push Video





Model

IPC-B610

Sensor

1.0 Megapixel CMOS Sensor

Size

1/3 inch

Effective Pixels

720P:1280*720

Minimum illumination

0.15 LUX

B/W

Yes

Infrared sensitivity

Yes

Filter

Yes

Camera lens

24PCS LENS   4/6 mm

Visual angle

85°/55° (Horizontal)

Infrared distance

20-30 M

Motion detection

Yes

Electronic shutter

1/5-1/15,000 sec

Backlight compensation

Yes

Aperture

Auto

White balance

Auto

S/N Ratio

.>50 dB

Video compression Format

H.264

Picture sharpness

720P:1280*720

Bit rate

80 K~ 2.0 M bps

Image frequency

30FPS

Audio Compression

ON

Two-way audio

ON

Alarm I/O

ON

Mount types

Wall Bracket

Ethernet

Ethernet (10/100 Base-T),RJ-45 connector

Protocol

TCP,UDP,IP,HTTP,FTP,SMTP,DHCP,DNS,

ARP,ICMP,POP3,NTP,RTP, and RTCP

Web Browser

Microsoft Internet Explorer 6.0 above

SDK

SDK-H

Safety

Administrator password protection

Temperature

-30°~60°C

Humidity

-10~85%

Power requirement

PoE (IEEE802.3af)

Specification of power supply

10-12W (DC 12V,1A)
