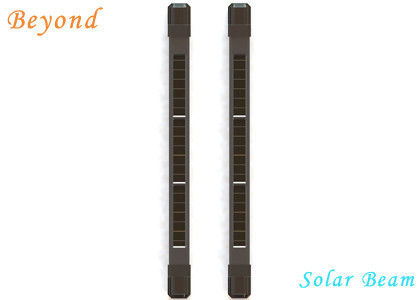

Solar-Powered 4-beam Active Wireless Infrared Beam Detector for Windows

Solar-Powered 4-beam Active Wireless Infrared Beam Detector for Windows

Model:CX-2012S4

Solar Infrared beam detector Product Overview

The solar-powered multi-beam active wireless infrared grating is a new-type hi-tech environmentally-friendly product and has obtained national patent. It applies sun's UV rays to supply power and charge for the detector, and adopts the wireless signal transmission device to transmit alarm signal instead of power cable and signal line. Our household active infrared gratings are classified into two types, namely 4-beam and 8-beam, which are widely applied in houses and offices etc.

Solar Infrared beam detector Name of Components:

Solar Infrared beam detector Function Description

1. It is much safer, for it alarms once the thief tries to come into the house.

2. Installed outdoors, not impeding indoor activities, and on duty round the clock.

3. Solar-powered wireless technology ensures high energy efficiency without any damage to the decoration.

4. Application of the working principle of the active wireless infrared detectors to the design helps to settle the problem

of false alarm.

5. Multi-beam design ensures a high rate of protection.

6. Equipped with the function of self-check and reporting to the host.

7. Immune to strong light interference, with interference indicating function.

8. Adoption of secondary modulated and coded light signal helps to avoid mutual interference among the infrared beams

of many pairs of Gratings.

Solar Infrared beam detector Application Environment

This alarm system is applied in villa, suite, office building and workshop windows for intrusion purpose.

Solar Infrared beam detector Detailed Parameters

1. Working voltage:3.2V

2.Battery Type :wireless LiFePO4li-ion battery

3. Battery capacity: transmitting terminal 600mA, receiving terminal 600mA

4. Static working current:

For 4-beam solar-powered anti-theft window, transmitting terminal≤0.6mA, receiving terminal≤0.6mA

For 8-beam solar-powered anti-theft window, transmitting terminal ≤1mA, receiving terminal≤1mA

5. Infrared light frequency: secondary modulation coding on the basis of 38KHz

6. Infrared light wavelength: 940nm±20nm

7. Number of infrared beams: 4 beams, 8 beams

8.Wireless transmitting frequency: FM 433MHz

9.Infrared distance: practicable distance 10m

10.Wireless transmitting distance: practicable distance 100m

11. Solar electric panel output current:

For solar-powered 4-beam infrared grating, ≥1.5mA at an illumination level of 1800Lx

For solar-powered 8-beam infrared grating, ≥3mA at an illumination level of 1800Lx

(Note: outdoor illumination intensity on rainy days is about 2000Lx)

12. Working environment temperature range:-30°C~70°C

13.Maximum alarm times in 24 hours:≤50 times

Solar Infrared beam detector For Windows applications:Product Dimension:

Solar Infrared beam detector For Windows applications:
