HIGH QUALITY, BEST SERVICE,REASONABLE PRICE.
 |
| Place of Origin: | China |
| Brand Name: | EST |
| Certification: | CE&ROHS |
| Model Number: | Intelligent Mobile Phone Signal Repeater/Amplifier/Booster |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 1-3 working days |
| Payment Terms: | 100% before shipment |
| Supply Ability: | 500pcs/week |
| Product Name: | GSM Signal Booster | Frequency Range: | Uplink:890—915MHZ Downlink 935-960MHz |
|---|---|---|---|
| Gain: | ≥ 65dB | In-band Ripple: | ≤ 4dB |
| Size: | 115*150*30 (mm) | I/O Impedance: | 50 Ω |
| High Light: | GSM Signal Repeater,GSM Signal Amplifier |
||

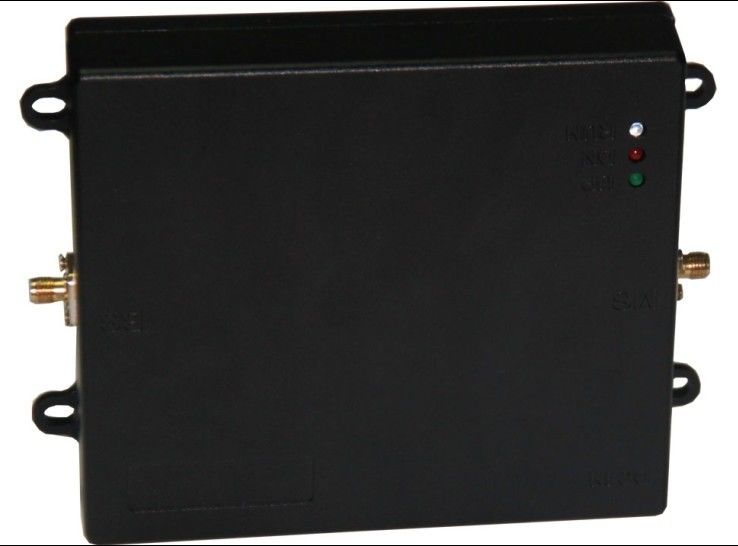

EST-intelligent 2G Mobile Phone GSM Signal Booster , HIGH Gain ≥ 65dB
Gain: ≥ 65dB
Dimensions: 115*150*30 (mm)
Weight: ≤ 1.5 kg
Features
1. Two signal ports with full duplex design
2. High system gain
3. Linear power amplification to effectively suppress inter-modulation and spurious emission
4. Unique color LEDs to indicate power supply and signal level of uplink and downlink
5. Simple installation with external AC/DC adapter
To expand signal coverage or fill signal blind area where 2G signal is weak or unavailable.
Indoor: Hotels, exhibition centers, basements, shopping malls, offices, parking lots.
Technical Specifications
|
SPECIFICATIONS |
Specification |
|
|
Frequency Range (Customers to Choose) |
Uplink |
825-845 MHz / 889-915 MHz / 1710-1735 MHz / 1920-1980 MHz |
|
Downlink |
870-890 MHz / 935-960 MHz / 1805-1835 MHz / 2110-2170 MHz |
|
|
Frequency Bandwidth (3dB Bandwidth) |
20MHz |
|
|
Gain |
≥ 65dB |
|
|
Automatic gain control (Step Attenuation) |
31dB @ 1dB/ Step |
|
|
Auto Gain Control |
20dB Min. |
|
|
Spurious Emission |
≤ -15dBm/30kHz |
|
|
9kHz~1GHz: ≤ -36dBm/30kHz |
||
|
1GHz~12.75GHz: ≤ -30dBm/30kHz |
||
|
Inter-Modulation Attenuation ACPR |
≤ -40dBc / 30kHz (measured under rated output power) |
|
|
In-band Ripple |
≤ 4dB |
|
|
Voltage Standing Wave Ratio |
<=1.5 |
|
|
I/O Impedance |
50 Ω |
|
|
Noise Figure |
≤ 5dB |
|
|
System Delay |
≤ 1μs |
|
|
RF Connector |
SMA-Type (Female) |
|
|
Operating Temperature |
Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C |
|
|
Power Supply |
AC 220V±20%, 50/60Hz(AC 220V/ DC5V/3A power adapter) |
|
|
Dimensions |
115*150*30 (mm) |
|
|
Weight |
≤ 1.5 kg |
|
|
Alarm Monitoring System |
Alarm for uplink self-oscillation & System Sleep |
|
|
Indication LED |
Power supply, Run, DW-Alarm, UP-Alarm&(System Sleep) |
|
