HIGH QUALITY, BEST SERVICE,REASONABLE PRICE.
 |
| Place of Origin: | China |
| Brand Name: | NEON |
| Certification: | CE, FCC, RoHs |
| Model Number: | WNIS36P |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Price: | Depend on Resolution |
| Packaging Details: | Packed in Carton |
| Delivery Time: | 1 Week |
| Payment Terms: | T/T; L/C; West Union |
| Supply Ability: | 200,000 Set One Month |
| High Light: | high speed dome camera,vandal proof security camera |
||
|---|---|---|---|

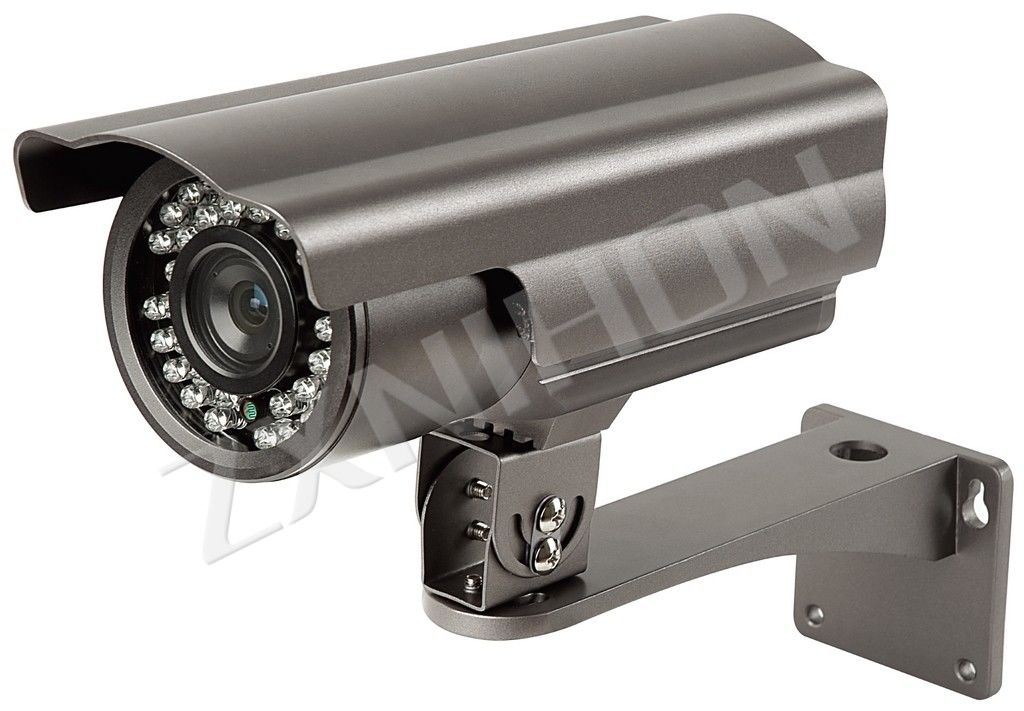

WNIS36P IR IP Network CCTV Camera With 36pcs IR LED, Front USB Storage, POE Power Supply
1) WNIS36P
IR waterproof IP Camera
36pcs IR LED, 30M IR Range
Lens: 4mm/6mm/8mm for optional
Support D1 Resolution
Built-in alarm, audio input and output interfaces
Support front USB Storage
Support POE power supply
IP 66 waterproof rating
| CCD | Resolution | CCD(P/N) | DSP | WDR | OSD |
| LL3M | 420TVL | A1329CA/A1325CA | A12152 | - | - |
| HH4M | 420TVL | RJ2421/RJ2411 | LR38627 | - | - |
| HH3M | 420TVL | RJ2321/RJ2311 | LR38603 | - | - |
| SS4M | 420TVL | 227AK/226AK | CXD3142 | - | - |
| SS3M | 420TVL | 405AK/404AK | CXD3142 | - | - |
| SN3D | 470TVL | 405AK/404AK | NVP2010 | - | - |
| SN3OD | 470TVL | 405AK/404AK | NVP2020 | - | OSD |
| SN3Q | 520TVL | 409AK/408AK | NVP2010 | - | - |
| SS3H | 500TVL | 409AK/408AK | CXD4103 | - | - |
| SN3OQA | 520TVL | 409AK/408AK | NVP2040 | - | OSD |
| SS3Q | 550TVL | 409AK/408AK | CXD3172 | - | - |
| HL3Q | 500TVL | RJ2362CA/RJ2352CA | RJ7 | - | - |
| HL3OQ | 500TVL | RJ2362CA/RJ2352CA | RJ9 | D-WDR | OSD |
| SL3Q | 600TVL | 639BK/638BK | RJ7 | - | - |
| SL3OQ | 600TVL | 639BK/638BK | RJ9 | D-WDR | OSD |
| SL3OQA | 600TVL | 639BK/638BK | RJ10 | D-WDR | OSD |
| SFE3D | 500TVL | 633BK/632BK | EFFIO-E | D-WDR | OSD |
| SFE3H | 600TVL | 639BK/638BK | EFFIO-E | D-WDR | OSD |
| SFE3Q | 700TVL | 673BK/672BK | EFFIO-E | D-WDR | OSD |
| Specifications | ||||||
| Module | HH4M | SS3M | SN3OQA | SL3OQ | SL3OQA | SFE3Q |
| Image Sensor |
1/4" COLOR SHARP CCD |
1/3" COLOR SONY Super HAD CCD |
1/3" COLOR SONY Super HAD CCD |
1/3" COLOR SONY Super HADⅡ CCD |
1/3" COLOR SONY Super HADⅡ CCD | 1/3" COLOR SONY Super HADⅡ CCD |
| Signal System | PAL/NTSC | |||||
| Effective Pixels |
PAL: 500(H)×582(V) NTSC: 510(H)×492(V) |
PAL: 500(H)×582(V) NTSC: 510(H)×492(V) |
PAL: 752(H)×582(V) NTSC: 768(H)×494(V) |
PAL: 752(H)×582(V) NTSC: 768(H)×494(V) |
PAL: 752(H)×582(V) NTSC: 768(H)×494(V) |
PAL: 976(H)×582(V) NTSC: 976(H)×494(V) |
| Resolution | 420TVL | 420TVL | 600TVL | 600TVL | 600TVL | 700TVL |
| DAC | 12Bit | 9Bit | 10Bit | 10Bit | 10Bit | 12Bit |
| Minimum Illumination | 0.5LUX/F1.2 | 0.1LUX/F1.2 | 0.1LUX/F1.2 | 0.01LUX/F1.2 | 0.01LUX/F1.2 | 0.01LUX/F1.2 |
| S/N Ratio (Y signal) | Over 48dB | Over 58dB | ||||
| Electronic Shutter Speed | 1/50-1/60, 000sec.(PAL), 1/60-1/60, 000sec.(NTSC) | |||||
| WDR | - | - | - | D-WDR | D-WDR | D-WDR |
| DNR | - | - | - | 2D-DNR | 3D-DNR | 2D-DNR |
| OSD | - | - | OSD | OSD | OSD | OSD |
| White Balance | Auto White Balance | Auto White Balance/Manual White Balance/Auto Tracking White Balance | ||||
| Gain Control | AUTO | Auto/Manual/Off | ||||
| Backlight Compensation | ON | ON/OFF | ||||
| Gamma Correction | 0.45 | |||||
| Synchronization | Internal | |||||
| Video Output | 1.0Vp-p, 75Ω | |||||
| Power Source | DC12V (9V ~ 15V) | |||||
| Operating Temp. | -20℃~60℃ / 10% ~ 95%RH | |||||
