HIGH QUALITY, BEST SERVICE,REASONABLE PRICE.
 |
| Place of Origin: | China |
| Brand Name: | Sunlit |
| Certification: | CE |
| Model Number: | SEB Series |
| Minimum Order Quantity: | 1-99 |
|---|---|
| Packaging Details: | Gift box/ White box |
| Delivery Time: | 1-15days after payment |
| Payment Terms: | FOB Shenzhen |
| Supply Ability: | 50000/month |

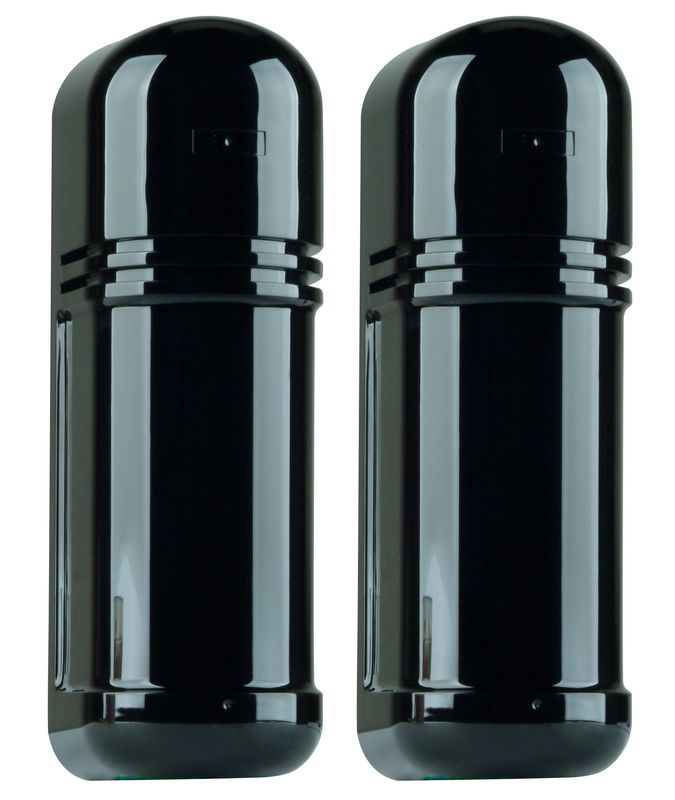

50 - 700ms Response Time 1a / 120v Ac Intrusion Detection System With 3 Beams Infrared
Features:
1．3 synchronized beams operate in high efficiency. Fit for outdoor installation due to its strong ability to fog, snow and rainfall proof.
2．8 bands frequencies for option, which can avoid and clear beams interference caused by highly superposing and long-ranged operation of infrared beams.
3．Receiver is with digital 10 sections of LED display, beams can be aligned accurately and immediately, no need of multi-meter for voltage focusing.
4．Transmitter adopts intelligent CPU design and quartz vibrator with stable frequency. It is not easily affected by temperature or humidity change.
5．Receiver adopts intelligent CPU design, decoding circuit, AGC circuit, digital band filtering circuit, alarm output control circuit all adopt intelligent CPU software processing, its action is extractive and can increase signal identification ability greatly to avoid external interference.
6．Adopt unique plane Fresnel lens with more powerful optical focus, which can avoid false alarm effectively.
Parameter:
| Model | SEB-50 | SEB-100 | SEB-150 | SEB-200 | SEB-250 |
| Distance(outdoor) | 50m | 100m | 150m | 200m | 250m |
| Operation current | 60mA | 60mA | 60mA | 60mA | 60mA |
| Operation voltage | DC 13.8-24V AC 11-18V | ||||
| Lens | Plane Fresnel lens | ||||
| Response time | 50—700ms | ||||
| Alarm output time | 2S | ||||
| Alarm output contact | NC,NO Contact capacitor AC, DC 30V/0.5mA | ||||
| Alarm output capacity | 1A/120V AC 2A/24V DC | ||||
| Tamper Output | NC touching capability AV/DC 24V/0.5mA | ||||
| Beams adjustment | V: 20°(±10°) H: 180°(±90°) | ||||
| Operation temperature | -25℃～60℃ 5%---95% | ||||
