HIGH QUALITY, BEST SERVICE,REASONABLE PRICE.
 |
| Place of Origin: | China |
| Brand Name: | Sunlit |
| Certification: | CE |
| Model Number: | ATM-40MS(P) |
| Minimum Order Quantity: | 1-99 |
|---|---|
| Packaging Details: | Gift box/ White box |
| Delivery Time: | 1-15days after payment |
| Payment Terms: | FOB Shenzhen |
| Supply Ability: | 50000/month |
| High Light: | motion detector alarm,portable motion detector alarm |
||
|---|---|---|---|

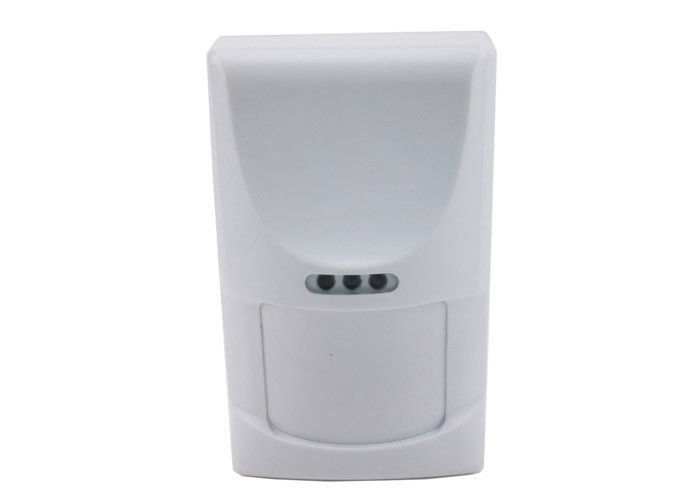

12m Distance 12v Single - Tech Motion Detector Intrusion Alarm System With Pet - Immunity
| This indoor PIR detector is very stable in function, its appearance is designed by European engineer and it is with NO/NC for option, temparature compensation makes it stable for indoor protection. It is with pet immunity up to 25kg. |
Features:
* Adopt advanced and stable circuit design, very low rate of failure alarm and false alarm.
* Fine anti-interference-30V/m from 30MHz to 1000MHz
* Excellent Fresenel optical lens, more powerful ability of capturing of human infrared ray.
* Automatic alternation pulse count.
* Dual-layer structure temperature compensation technology, which has solved the problem of interference from normal temperature.
* ESD,anti electric-strike and interference from mobile phone.
* Low power consumption. (<10 mA stand by,17mA alarm)
* Pulse count for option. (1,2 or 3)
* Various kinds of lens for option. (4 types: curtain, pet-immunity, wide-angle, long-distance)
* Detection range for curtain lens: 12*6m
* Detection range for pet-immunity lens: 12*12m
* Detection range for wide-angle lens: 12*12m
* Detection range for long-distance lens: 28*6m
Parameter:
| Operatiovoltage/current | 9-16V/DC 15mA |
| Detection distance | 12m 100° |
| Installation height | 1.5m-2.4m |
| Sensitivity | L/H for option |
| RFI/EMI protection | >30V/m 500MHz |
| Alarm output | 100mA/24V |
| Anti-mask /trouble output |
|
| Operation temperature | -20℃～+40℃ |
| Operation humidity | 5%-95%(RH) |
| Anti white light | >10000LUX |
| Pet immunity | 30Kg |
| Detection speed | 0.2m/s to 3.5m/s |
