| Place of Origin: | China |
| Brand Name: | Sunlit |
| Certification: | CE, FCC, RoHs |
| Model Number: | OTD-40T |
| Competitors: | VX-402, DG-85, FT-89, OD850-F1, DIRFE |
|---|
| Minimum Order Quantity: | 1-99 |
|---|---|
| Price: | 20.00usd |
| Packaging Details: | Gift box/ White box |
| Delivery Time: | 3-15days after payment |
| Payment Terms: | FOB Shenzhen |
| Supply Ability: | 20000/month |
| Operation Voltage/current: | 9-16V/DC 25mA | Detection Distance: | 12m 110° |
|---|---|---|---|
| Operation Mode: | Dual-tech Or Single-tech Alarm Modes For Option | Pet Immunity: | 30Kg |
| High Light: | portable motion detector alarm,wireless motion detectors |
||

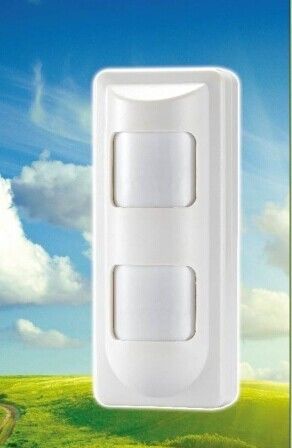

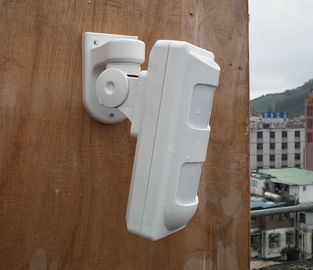

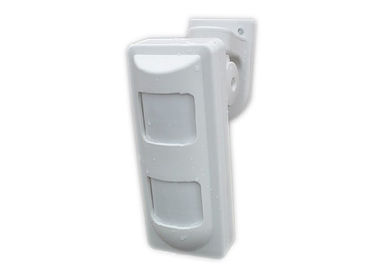

3 - Tech Outdoor 2 PIR + MW Alarm Motion Detectors With MW Anti - mask (Pet Immunity & Curtain Lens For Option)
fit for commercial/residential area,factory,hotel,bank,apartment,villa,farm etc...
Features:
1.DRO micro radar+2 independent dual PIR detection technology.
2.Adopts multi-grades intelligent signal processing software, full analysis and processing of all kinds of false alarms.
3.Adopts micro power-consumption 8 digits CMOS single chip control.
4.Professional grade IP-65 water-proof design, fit for fully outdoor installation
5.Double layer filtering system, anti strong light interference..
6.Digital analysis pet-immunity technology.
7.MW anti-masking technology, can detect the attempt of blocking MW or PIR channel.
8.3 colors LED display, can recognize signals of PIR, MW, anti-masking and troubles.
9.Unique anti-masking and trouble output.
10.AND/OR modes for option, fit for various kinds of environments.
11.MW range adjustable.
12.With high/low sensitivity selection.
13.Unique full-range temperature compensation technology.
14.Anti strong EMI interference.
15.EI control mode for option.
Parameter:
| Operation voltage/current | 9-16V/DC 25mA |
| Detection distance | 12m 110° |
| Installation height | 1.5m-2.4m |
| MW frequency | 10.525GHz |
| Sensitivity | L/H for option |
| RFI/EMI protection | >30V/m 500MHz |
| Alarm output | 200mA/24V |
| Anti-mask /trouble output | 100mA/24V |
| Tamper output | 300mA/24V |
| Operation temperature | -20℃～+55℃ |
| Operation humidity | 5%-95%(RH) |
| Anti white light | >10000LUX |
| Operation mode | Dual-tech or single-tech alarm modes for option |
| Detection speed | 0.2m/s to 3.5m/s |
| Pet immunity | 30Kg |
