| Place of Origin: | Guangdong China |
| Brand Name: | Dragon |
| Certification: | CE, FCC, IP65 |
| Model Number: | G-TK203 |
| Minimum Order Quantity: | 5pcs |
|---|---|
| Packaging Details: | Cardboard |
| Delivery Time: | 5 working days |
| Payment Terms: | Pay in advance |
| Supply Ability: | 20K/Month |
| Technique Support: | Free |
| Warranty: | 1 year |
| Web platform: | www.dbgps.com |
| Accont: | Demo |
| Password: | 123456 |
| GPS Chipset: | Latest SIRF-Star III High Sensitivity Chipset | GPS Sensitivity: | -159dB |
|---|---|---|---|
| Channels: | 20/50 Channel All-in-view Tracking | Dimension: | 47×45×21 Mm |
| Weight: | 40g | Battery: | 3.7V 850mAH Lithium Battery |
| High Light: | sports gps watch,gps locator watch |
||

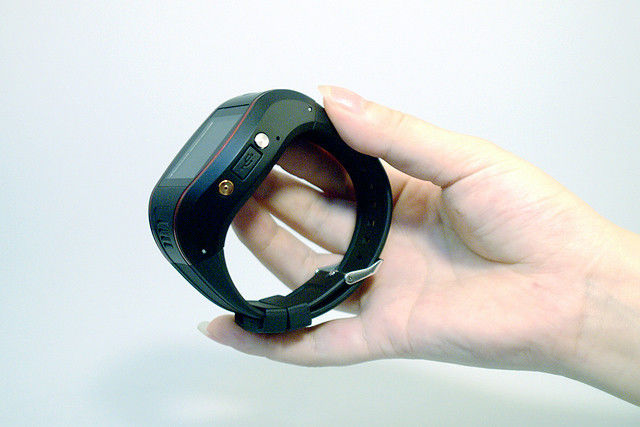

The G-TK203 is a tiny size GPS/GPRS/GSM mobile personal tracker, Adopt fourth-generation GPS positioning technology, accurate real time positioning, Suitable for children, elderly, lone workers, assets and pet
Highlights:
Based on the latest international industrial-class chip, dual-core structure.
Build-in GPS/GSM antenna
Ting size (47mmx45mmx21mm) for Easy to carry
GSM auxiliary positioning, reduce blind spots.
Features:
Real-time GPS tracking by SMS/PC/ PDA cell phone
SOS button alarm
Geo-fencing control
Battery power low alarm
Blind area data storage, up to 1500 data log capacity
History track inquires
Remote control via mobile phone
Dual data communication capability through GPRS and SMS
TCP/UDP dual mode communication
Technical parameters:
|
GSM/GPS module performance |
Dual-Band 900Mhz,1800Mhz |
|
GPS Chipset |
Latest SIRF-Star III high sensitivity chipset |
|
GPS Sensitivity |
-159dB |
|
Antenna |
GPS flat active integrated antenna/GSM FPC antenna |
|
Channels |
20/50 channel all-in-view tracking |
|
Dimension |
47×45×21 mm |
|
Weight |
40g |
|
Battery |
3.7V 850mAH Lithium battery |
|
Normal power consumption |
60mA (Power Saving Mode<2mA) |
|
Charging Voltage |
DC 5V |
|
Working Temperature |
-20℃~+60℃ |
|
Working Humidity |
5%~95% RH |
|
Interface |
Mini USB port for charging and data exchanging |
Standard accessories:
-TK-203 main unit
- USB data cable
- Charger
Based
