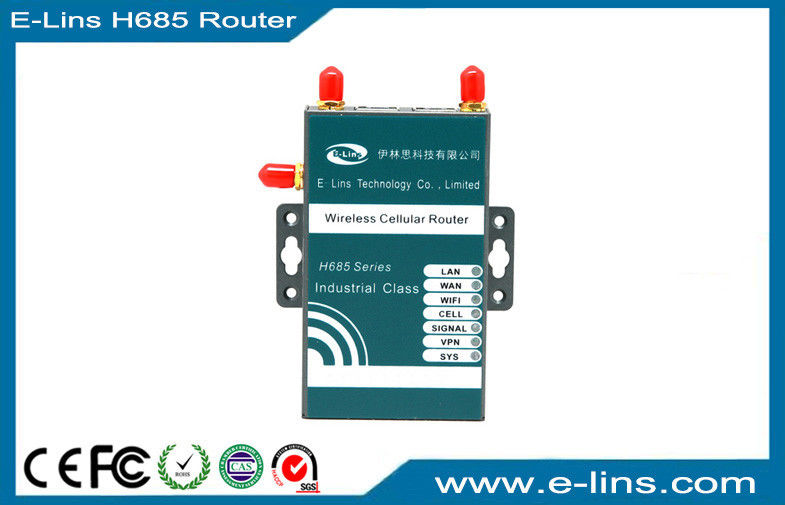

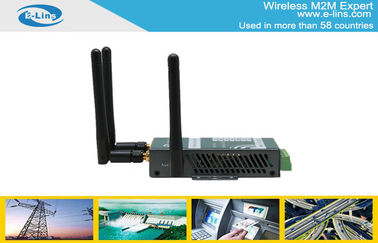

H685 4G GSM CDMA2000 IEEE 802.11n Industrial Cellular Router With SMS Reboot / Monitor

Wireless Cellular Network and Bands

4G LTE

4G FDD LTE:

Band 1--2100Mhz

Band 2--1900Mhz

Band 3--1800Mhz

Band 4—AWS(1700/2100Mhz)

Band 5--850Mhz

Band 7--2600MHz

Band 8--900Mhz

Band 12--700Mhz

Band 13--700(B13)Mhz

Band 17--700(B17)/AWS

Band 19—800Mhz

Band 20--DD800Mhz

Band 21

Band 25 –1900Mhz G Block

Band 31– 450Mhz
Other FDD band…

4G TDD LTE (TD-LTE)

Band 41 – 2500/2600Mhz

Band 40 -- 2300Mhz

Band 39 – 1900Mhz

Band 38 -- 2600Mhz

Other TDD band…

FDD LTE: 100Mbps downlink, 50Mbps uplink;
TDD LTE: 150Mbps downlink, 50Mbps uplink;

Notes: There are many different band and frequencies for 4G LTE. Please confirm the detailed band and frequency with your carriers before order.

3G

UMTS WCDMA (HSUPA/HSDPA/HSPA/HSPA+/DC-HSPA+);

CDMA2000 EVDO Rev 0, Rev A, Rev B;

TD-SCDMA (TD-HSDPA, TD-HSUPA);

UMTS/HSPA/HSUPA/HSPA/HSPA+/DC-HSPA+ (WCDMA/FDD): 850/1900/2100 MHz, option for 850/900/1900/2100Mhz/1700Mhz/AWS;

3G TD-SCDMA 2010~2025MHz/1880~1920MHz

CDMA2000 EVDO 800/1900Mhz, option for 450Mhz;

UMTS WCDMA

DC-HSPA+: Downlink 42Mbps, Uplink 5.76Mbps;

HSPA+(H): Downlink 21Mbps, Uplink 5.76Mbps;

HSPA+(L): Downlink 14.4Mbps, Uplink 5.76Mbps;

HSUPA: Downlink 7.2Mbps, Uplink 5.76Mbps;

HSDPA: Downlink 7.2 Mbps, Uplink 384k bps;

WCDMA/UMTS: Downlink/Uplink 384 kbps;

CDMA2000 EVDO:
Rev B: 14.7Mbps downlink, 5.4Mbps uplink
Rev A: 3.1Mbps downlink, 2.4Mbps uplink

Rev O: 2.4Mbps downlink, 153.6kbps uplink

3G TD-SCDMA: 2.8Mbps

2G

Quad-band GSM/GPRS/EDGE 850/900/1800/1900Mhz;

CDMA1x: 800/1900Mhz, option for 450Mhz;

EDGE: Downlink 384 kbps, Uplink 118 kbps;

GPRS: Downlink 108 kbps, Uplink 42.8 kbps;

CDMA1x: Downlink/Uplink 153.6kbps;

Network and Band Lock Feature (Option)

Default is unlocked, can use this feature to lock

Main Features and Performance

USB Host

No

SMS/Voice

SMS/Voice call to control router to be online, offline, reboot and status monitor; SMS is default feature, Voice is option

GPS (Option)

GPS feature

DTU (Option)

With DTU feature (Serial to Cellular Gateway feature, RS232 or RS485 port option).

Details:

Serial Baudrate: 300bps, 600bps, 1200bps, 2400bps, 4800bps, 9600bps, 19200bps, 38400bps, 57600bps, 115200bps;

Serial Parity: none, even, odd;

Serial Databits: 7, 8;

Serial stopbits: 1, 2;

Serial flow control: none, hardware, software;

Mode: Server (up to 4 server centre, can OEM to be more), Client;

Protocol: TCP, UDP ;

Heart Beat : Yes;

VPN

PPTP, L2TP, IPSec, GRE, Tunnel　(PPTP server, PPTP client, L2TP client, IPSec client, IPsec server)

OpenWRT (Option)

Optional

VRRP (Option)

Optional

Route

Static Route;

Optional for Dynamic Route (BGP, BGPD, OSPF, Zebra, Rip);

SNMP

Support V1, V2. V3

VLAN

Support multi-LAN IP address, support two IP address

Wi-Fi

Optional, 802.11b/g/n; 150Mbps default. 300Mbps optional.

Can be used as AP and client;

Frequency from 2.4GHz to 2.483GHz,Access Points, Routers and Gateway Server Applications, wireless up to 254 PC users

Fail Over Redundancy (network Backup feature)

Auto-dial feature, keep alive link;

LCP, ICMP check;

Built-in watch dog;

Cellular (2G/3G/4G), RJ45 WAN (xDSL, DHCP, Fixed IP), WiFi client three line redundancy;

Two H685 dual sim same network(Network1+ Network1);

Two H685 dual sim two network (Network2+ Network 2);

Two H685 dual sim dual mode network (WCDMA+CDMA2000, WCDMA+LTE, CDMA2000+LTE);

Cold Backup is default, Hot Backup is option;
Cold Backup=WAN RJ45 and Cellular WAN not online at the same time. One line online and the other line standby, switch freely with triggers;

Hot Backup=WAN RJ45 and Cellular WAN are online at the same time. Data goes the main line, and switch to the other line. Hot Backup switch time is shorter than Cold Backup.

POE

POE for LAN/WAN RJ45 (use with POE adapter)

Firmware update

support firmware update locally or remotely (LAN, WiFi and OTA WAN)

Syslog

local and remote

DDNS

Yes

DHCP Server

Yes

Others

DNS proxy;

Optimized EMC design;

Real-time clock (NTP, support update with defined hours);

WAN/LAN/Memory statistics;

Local/remote profiles backup and retrieve;

Management System

Option

Protocol

Protocol support

TCP, UDP, SMTP, POP, ICMP, FTP, PPP, PPPoE, DHCP, DDNS, DNS, WPS, DMZ, NAT, xDSL, NTP, QoS, etc.

Security

Firewall

support 64/128 bits WEP, 802.1x, WPA, and WPA2

support WDS

support WPA1/2 – PSK

support WPA1/2 – 802.1x

support EAP – TLS, TTLS, LEAP, PEAP

TKIP, AES encryption

support access with user name & password.

support access control base WAN/LAN interface

support access control base source IP address

defense DOS attack, support SYN flooding, IP surfing, ping of Death, fragile, teardrop, land etc.

support PAP & CHAP

support IP filtering

support content filtering

support NAT/NAPT/Port forwarding/DMZ

Advanced Firewall Features

Stateful Packet Inspection (SPI)

VPN Pass-through

Media Access Control

CSMA/CA with ACK

Certifications

REDIUS Client

Interface

LAN/WAN

1X 10/100M LAN port (RJ45 interface)

1X 10/100M WAN port (RJ45 interface)

(WAN RJ45 can convert into LAN RJ45 to get 2 LAN RJ45)

WAN ports support Cell/Static IP/DHCP/PPPoE (on demand, keep alive, schedule, manual)

Antenna

2 antenna for Wi-Fi (detachable, SMA interface * 1, Internal *1)

3 antenna for Cellular and GPS (detachable, 50Ω SMA female interface), Cellular support diversity receiving (MIMO) option

Led

SYS*1

VPN*1

Cell Signal*1

Cell*1

WAN*1

LAN*1

WiFi*1

Button

Reset

Console

1 console port

Serial port

RS232 or RS485 built-in terminal block interface

IO Port (option)

2

Management

Easy to use and management;

Web/Telnet/SSH/CLI, support remote management

SMS;

SNMP;

RMS (Remote Management System)

At command

Supported

UIM/SIM Card Slot

Support 1.8V/3V UIM/SIM cards, one sim card slot

DC Jack

Two types of input jack for DC

2.5mm DC jack * 1

Terminal Block * 1

Power

Power supply

DC5V-50V , typical DC 9V1A or 12V1A, 12v CAR USE;

DC5V~40V is the default, DC5V~50V is the option

Current

Idle: about 100mA@12VDC

Communication: about 260mA@12VDC

Software

Device Management

WEB interface (Internet Explorer v6 or Later; Mozilla Firefox v1.5 or Later, or other Java-enabled Browsers, Chome, Opera, Sarafi, etc.)

Minimum System Requirements

Windows, Linux, Mac OS, IOS, Symbian, Android, other OS support web browser;

Network Interface Card

Physical

Operating Temperature

Storage Temperature: -40 ~ 85°C

Working Temperature: -30 ~ 75°C

Humidity

95% Maximum (Non-condensing)

Dimensions

PCBA: 96mm x 56mm x 14mm

With case: 100mm x 60mm x 21mm

Weight

220g (not including the antenna)
330g (including the antenna)
650g (including all accessories, without package)

Color

Metal Gray-Black, OEM is available

Others

Warranty

1 Year default. Option extends to 5 years maximum.

Package Contents

H685 Series 4G Cellular Internet Router

Ethernet Cable

Power Adapter

Antenna

Others depends on option features
