HIGH QUALITY, BEST SERVICE,REASONABLE PRICE.
 |
| Place of Origin: | China |
| Brand Name: | E-Lins |
| Certification: | CE/ROHS/FCC/SGS |
| Model Number: | H685t-3 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in carton firstly, and then reinforced with boxes |
| Delivery Time: | Sample in 3 days (for usual version), Bulk order in 2-30 working days depends on material stock |
| Payment Terms: | T/T or western Union |
| Supply Ability: | 20,000pcs per month |
| Wireless Type: | 4G LTE FDD TDD | Supported Networks: | 4G LTE, HSDPA, HSUPA, HSPA+, DC-HSPA+, EDGE, GPRS, GSM, CDMA, EVDO, TD-SCDMA |
|---|---|---|---|
| Port: | RJ45, Serial RS232 RS485 | LAN/WAN RJ45: | 1 LAN RJ45, 1 WAN RJ45 |
| Antenna: | External Replaceable | SIM Card Slot: | Yes |
| WLAN: | WiFi 802.11b/g/n | Type: | Industrial Class |
| Application: | Wireless M2M | Case Material: | Metal |
| High Light: | 4G LTE Router,3g/4g mobile broadband router |
||
WiFi VPN LTE 4G Router With GPS Sim Slot POE H685 for Wireless M2M
H685 cellular router key points:
Keep alive;
Cellular 4G / 3G / 2G;
GPS;
Serial RS232 or RS485;
Digital I/O ports;
VPN, DDNS, Dynamic Route, NAT, NAPT, DMZ;
Remote Web / Telnet CLI SSH / SMS monitor and control;
Description of LTE 4G Router H685t
With smart size, H685t is compact LTE 4G router owning high speed wireless and Ethernet connections. It built-in high quality industrial LTE modem module, which can reach download rate of up to 100 or 150Mbps and upload rate up to 50Mbps. Router supports the latest IEEE802.11n as well as IEEE802.11b/g standards and provides wireless receiving and transmitting rate of up to 150 Mbps. External antenna connectors make it possible to attach desired antennas and to easily find the best signal location.
Key features of H685t 4G Router
Specifications of LTE 4G Router H685t
|
Wireless |
|
|
Compatible Mobile Networks |
4G LTE (FDD/TDD) Back compatible to 3G UMTS WCDMA (HSUPA/HSDPA/HSPA/HSPA+/DC-HSPA+); 2G GSM EDGE/GPRS CDMA1x, CDMA2000 EVDO Rev 0, Rev A, Rev B TD-SCDMA |
|
Cellular Frequency |
4G FDD LTE: Band 1--2100Mhz Band 2--1900Mhz Band 3--1800Mhz Band 4—AWS(1700/2100Mhz) Band 5--850Mhz Band 7--2600MHz Band 8--900Mhz Band 12--700Mhz Band 13--700(B13)Mhz Band 17--700(B17)/AWS Band 19—800Mhz Band 20--DD800Mhz Band 21 Band 25 –1900Mhz G Block Band 31– 450Mhz
4G TDD LTE (TD-LTE): Band 41 – 2500/2600Mhz Band 40 -- 2300Mhz Band 39 – 1900Mhz Band 38 -- 2600Mhz Other TDD band…
UMTS/HSPA/HSUPA/HSPA/HSPA+/DC-HSPA+ (WCDMA/FDD): 850/1900/2100 MHz, option for 850/900/1900/2100Mhz/1700Mhz/AWS;
3G TD-SCDMA: 2010~2025MHz/1880~1920MHz
Quad-band GSM/GPRS/EDGE 850/900/1800/1900Mhz;
CDMA1x/EVDO: 800/1900Mhz, option for 450Mhz;
Notes: There are many different band and frequencies for 4G LTE. Please confirm the detailed band and frequency with your carriers before order. |
|
Bandwidth |
FDD LTE: 100Mbps downlink, 50Mbps uplink;
DC-HSPA+: Downlink 42Mbps, Uplink 5.76Mbps; HSPA+(H): Downlink 21Mbps, Uplink 5.76Mbps; HSPA+(L): Downlink 14.4Mbps, Uplink 5.76Mbps; HSUPA: Downlink 7.2Mbps, Uplink 5.76Mbps; HSDPA: Downlink 7.2 Mbps, Uplink 384k bps; WCDMA/UMTS: Downlink/Uplink 384 kbps; CDMA EVDO: Rev O: 2.4Mbps downlink, 153.6kbps uplink
3G TD-SCDMA: 2.8Mbps
EDGE: Downlink 384 kbps, Uplink 118 kbps; GPRS: Downlink 108 kbps, Uplink 42.8 kbps; CDMA1x: Downlink/Uplink 153.6kbps;
Notes: the bandwidth is peak value. Real value depends on carrier network support. |
|
Network and Band Lock Feature (Option) |
Default is unlocked, can use this feature to lock |
|
Main Features and Performance |
|
|
USB Host |
No |
|
SMS/Voice |
SMS/Voice call to control router to be online, offline, reboot and status monitor; SMS is default feature, Voice is option |
|
GPS (Option) |
GPS feature |
|
DTU (Option) |
With DTU feature (Serial to Cellular Gateway feature, RS232 or RS485 port option). Details: Serial Baudrate: 300bps, 600bps, 1200bps, 2400bps, 4800bps, 9600bps, 19200bps, 38400bps, 57600bps, 115200bps; Serial Parity: none, even, odd; Serial Databits: 7, 8; Serial stopbits: 1, 2; Serial flow control: none, hardware, software; Mode: Server (up to 4 server centre, can OEM to be more), Client; Protocol: TCP, UDP ; Heart Beat : Yes; |
|
VPN |
PPTP, L2TP, IPSec, GRE, Tunnel (PPTP server, PPTP client, L2TP client, IPSec client, IPsec server) |
|
OpenWRT (Option) |
Optional |
|
VRRP (Option) |
Optional |
|
Route |
Static Route; Optional for Dynamic Route (BGP, BGPD, OSPF, Zebra, Rip); |
|
SNMP |
Support V1, V2. V3 |
|
VLAN |
Support multi-LAN IP address, support two IP address |
|
Wi-Fi |
Optional, 802.11b/g/n; 150Mbps default. 300Mbps optional. Can be used as AP and client; Frequency from 2.4GHz to 2.483GHz,Access Points, Routers and Gateway Server Applications, wireless up to 254 PC users |
|
Fail Over Redundancy (network Backup feature) |
Auto-dial feature, keep alive link; LCP, ICMP check; Built-in watch dog; Cellular (2G/3G/4G), RJ45 WAN (xDSL, DHCP, Fixed IP), WiFi client three line redundancy; Two H685 dual sim same network(Network1+ Network1); Two H685 dual sim two network (Network2+ Network 2); Two H685 dual sim dual mode network (WCDMA+CDMA2000, WCDMA+LTE, CDMA2000+LTE);
Cold Backup is default, Hot Backup is option; Hot Backup=WAN RJ45 and Cellular WAN are online at the same time. Data goes the main line, and switch to the other line. Hot Backup switch time is shorter than Cold Backup. |
|
POE |
POE for LAN/WAN RJ45 (use with POE adapter) |
|
Firmware update |
support firmware update locally or remotely (LAN, WiFi and OTA WAN) |
|
Syslog |
local and remote |
|
DDNS |
Yes |
|
DHCP Server |
Yes |
|
Others |
DNS proxy; Optimized EMC design; Real-time clock (NTP, support update with defined hours); WAN/LAN/Memory statistics; Local/remote profiles backup and retrieve; |
|
Management System |
Option |
|
Protocol |
|
|
Protocol support |
TCP, UDP, SMTP, POP, ICMP, FTP, PPP, PPPoE, DHCP, DDNS, DNS, WPS, DMZ, NAT, xDSL, NTP, QoS, etc. |
|
Security |
|
|
Firewall |
support 64/128 bits WEP, 802.1x, WPA, and WPA2 support WDS support WPA1/2 – PSK support WPA1/2 – 802.1x support EAP – TLS, TTLS, LEAP, PEAP TKIP, AES encryption support access with user name & password. support access control base WAN/LAN interface support access control base source IP address defense DOS attack, support SYN flooding, IP surfing, ping of Death, fragile, teardrop, land etc. support PAP & CHAP support IP filtering support content filtering support NAT/NAPT/Port forwarding/DMZ |
|
Advanced Firewall Features |
Stateful Packet Inspection (SPI) VPN Pass-through |
|
Media Access Control |
CSMA/CA with ACK |
|
Certifications |
REDIUS Client |
|
Interface |
|
|
LAN/WAN |
1X 10/100M LAN port (RJ45 interface) 1X 10/100M WAN port (RJ45 interface) (WAN RJ45 can convert into LAN RJ45 to get 2 LAN RJ45) WAN ports support Cell/Static IP/DHCP/PPPoE (on demand, keep alive, schedule, manual) |
|
Antenna |
2 antenna for Wi-Fi (detachable, SMA interface * 1, Internal *1) 3 antenna for Cellular and GPS (detachable, 50Ω SMA female interface), Cellular support diversity receiving (MIMO) option |
|
Led |
SYS*1 VPN*1 Cell Signal*1 Cell*1 WAN*1 LAN*1 WiFi*1 |
|
Button |
Reset |
|
Console |
1 console port |
|
Serial port |
RS232 or RS485 built-in terminal block interface |
|
IO Port (option) |
2 |
|
Management |
Easy to use and management; Web/Telnet/SSH/CLI, support remote management SMS; SNMP; RMS (Remote Management System) |
|
At command |
Supported |
|
UIM/SIM Card Slot |
Support 1.8V/3V UIM/SIM cards, one sim card slot |
|
DC Jack |
Two types of input jack for DC 2.5mm DC jack * 1 Terminal Block * 1 |
|
Power |
|
|
Power supply |
DC5V-50V , typical DC 9V1A or 12V1A, 12v CAR USE; DC5V~40V is the default, DC5V~50V is the option |
|
Current |
Idle: about 100mA@12VDC Communication: about 260mA@12VDC |
|
Software |
|
|
Device Management |
WEB interface (Internet Explorer v6 or Later; Mozilla Firefox v1.5 or Later, or other Java-enabled Browsers, Chome, Opera, Sarafi, etc.) |
|
Minimum System Requirements |
Windows, Linux, Mac OS, IOS, Symbian, Android, other OS support web browser; Network Interface Card |
|
Physical |
|
|
Operating Temperature |
Storage Temperature: -40 ~ 85°C Working Temperature: -30 ~ 75°C |
|
Humidity |
95% Maximum (Non-condensing) |
|
Dimensions |
PCBA: 96mm x 56mm x 14mm With case: 100mm x 60mm x 21mm |
|
Weight |
220g (not including the antenna) |
|
Color |
Metal Gray-Black, OEM is available |
|
Others |
|
|
Warranty |
1 Year default. Option extends to 5 years maximum. |
|
Package Contents |
H685 Series Wireless 4G Router Ethernet Cable Power Adapter Antenna Others depends on option features |
Applications
Typical Application Diagram

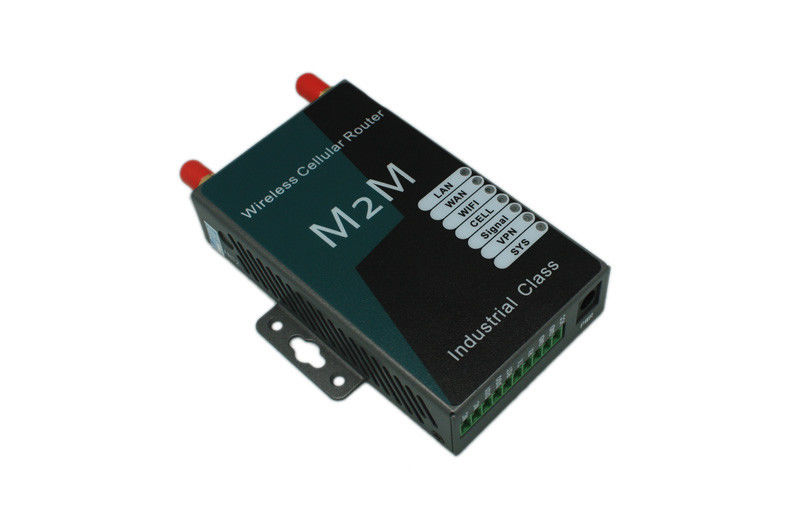

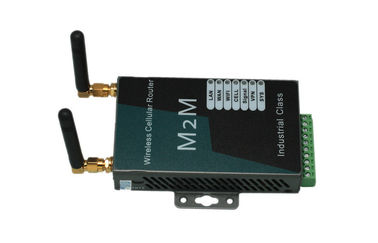

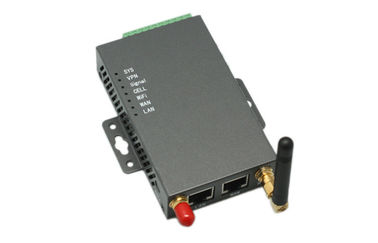

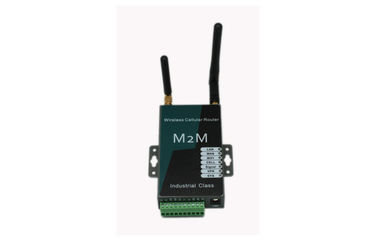

More Pictures of LTE 4G Router H685t
