HIGH QUALITY, BEST SERVICE,REASONABLE PRICE.
 |
| Place of Origin: | China |
| Brand Name: | KIWAY |
| Certification: | CE, FCC |
| Model Number: | JBW63229 |
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Bubble Foam, Carton Box, Wooden Case. |
| Delivery Time: | 30 days upon order confirmed. |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000 Unit/Units per Month |
| Warranty: | 1 Year warranty |
| High Light: | card dispensing machine,card dispenser machine |
||
|---|---|---|---|

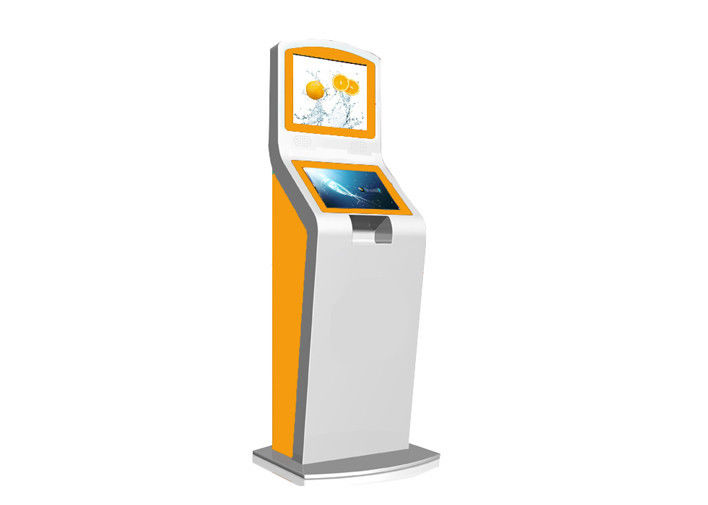

15 / 17 inch Touch Screen Internet Ticketing Printing Card Dispenser Kiosk JBW63229
Basic functions:
Ticketing/photo / card printing
Tel/transport card recharging
Photos, ring tones download
Product information release
Internet / information access
Account inquiry & transfer
Retail / ordering / payment
Basic Configuration :
|
Display |
15" or 17" LED |
|
Touch Screen |
15" or 17" SAW/Infrared/Resistance/Capacitive touch screen |
|
Computer |
Mainboard:H61, CPU: Intel G620 2.5GHz, RAM:DDRIII 2GB; Hard Disk: 500GB, 8 USB 1RS232,1 LTP, 1VGA,1LAN 10/100M Net Port; Sound Card, 1VGA 1DVI Integrated Display Card, power supply ATX:300W |
|
Bankcard reader |
Manual insert or motorized card reader for magnetic/IC cards reading |
|
Encrypted Pin Pad |
Metal Encrypted pin pad/EPP |
|
Cash acceptor |
98％or greater; four ways; face up & down; Capacity: Up to 600 Notes |
|
Coin acceptor |
Teach and Run on all windows, multiple applications, including high-security. Suite of programming tools (PCbased ccProgrammer, ccTeach or ccEuro Teach), Individual coin inhibit, Diagnostics and alarm reporting. |
|
RFID/Smart card reader |
Calypso ISO/IEC 14443 reader/writer(Type A&B) include SAM slot |
|
Card Dispenser |
Dispenser speed:≥1card/s, RS232, maximum contain 500 cards. |
|
Printer |
80mm thermal printer |
|
Barcode Scanner |
1 d code or QR Code |
|
Speaker |
Multi-media Speakers |
|
Operation System |
OS Windows 7 ( test or licensed version) |
|
Enclosure |
All Steel made Enclosure(stainless steel, aluminum optional) |
|
Finish |
Powder coating or automobile paint |
|
LOGO |
LOGO&Color upon request |
|
Protector |
Power surge protector & breaker switch |
|
Power Supply |
International 110–240 AC power |
|
Operating Enviroment |
Temperature:+5°C ~ +50°C, Humidity:0% ~ 80% |
Applications:
Basic functions:
Optional functions:
Customize Options:
Optional Configurations:
Following components can be integrated into Kiosk upon specific application requirement.
| Cash dispenser | Coin hopper |
| Check reader | Passport reader |
| Fingerprint reader | Card printer |
| Card dispenser | A4 laser / thermal printer |
| Telephone | Camera |
| Motion Sensor | Air conditioner |
| Metal keyboard | UPS |
| Authentictation | |
| Wireless connective ( WiFi / GSM / GPRS) |
