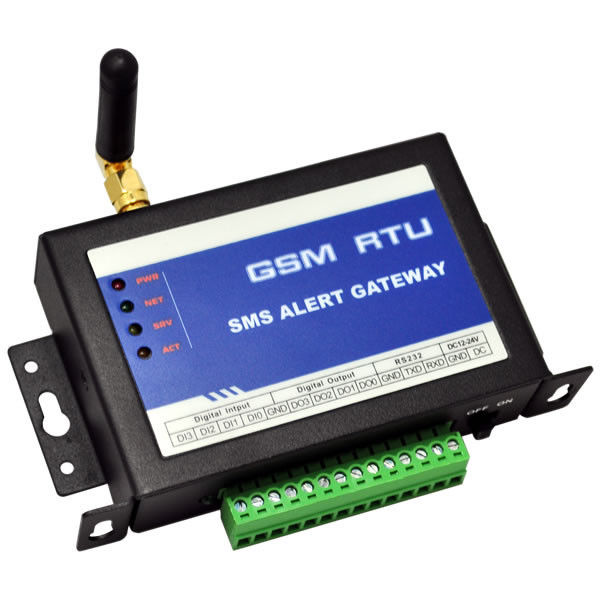

CWT5010 GSM Alarm Module

CWT5010 GSM Alarm Module

  • CWT5010 GSM Alarm Module
CWT5010 GSM Alarm Module
Product Details:
Place of Origin: China
Brand Name: CWT
Certification: CE
Model Number: CWT5010
Payment & Shipping Terms:
Price: 130USD
Packaging Details: 1 units / box
Delivery Time: 3 days after payment
Payment Terms: paypal, western union, T/T bank tranfer
Supply Ability: 5000 per month
Contact Now
Detailed Product Description



GSM remote control system , GSM RTU SMS Controller, GSM Remote Controller

                        Support 3g version  (Skype: glare.wang)



CWT5010 GSM Alarm Module 0



Features

·Configurable for alarm and recover sms

·Automatically report the status of itself on schedule

·Support remote setting via sms commands

·Preset 10 phone numbers(can be distributed authority)

·Remote add/edit/delete phone group

·Automatically update internal clock via sms

·Time stamped in alarm or recover messages

·Support ring call when alarm

·Temperature sensor (optional)

·Internal battery (optional)

·Easy used GUI configure software

·Adopted highly integrated industrial CPU

·Reliable performance with built-in double watchdog

·Low maintenance, 24×7 operation



4 digital inputs feature

·NO or NC type can be preset

·Configurable for alarm and recover sms

·Configurable for alarm ensure time

·Configurable for alarm delay time

·Configurable for service number’s authority of receive inputs alarm

·Remote query inputs status



4 relay drivable outputs

·Multiple output type can be preset

·Remote On/Off/Pulse outputs

·Configurable for pulse time

·Remote query outputs status

·Outputs can be activated by alarm or call

·Outputs can be activated on schedule



CWT5010 Terminal Description:

CWT5010 GSM Alarm Module 1



Specifications



Parameter



DC Power supply

12-24V DC (Standard adapter: DC 12V/1.5A)

Power consumption

12V input  Max. 150mA/Average 50mA

Frequency range

Quad-frequency 900/1800/850/1900HMz

SIM Card

Supporting 3V SIM Card

Antenna

50 Ω SMA Antenna interface

Serial

RS232

Temperature range

-30°C ~ +70 °C

Humidity range

Relative humidity 95%

Digital Input

4 digital inputs(Dry contact)

output

4 drivable relay outputs(open-collector outputs)

Output drive voltage

Equal to input DC voltage

Output drive power

Drive voltage ≤35V, drive current ≤500mA

Exterior dimension

96×63×25mm

Weight

256 g



CWT5010 Application:

CWT5010 GSM Alarm Module 2CWT5010 GSM Alarm Module 3CWT5010 GSM Alarm Module 4CWT5010 GSM Alarm Module 5
