WNIS36P IR IP Network CCTV Camera With 36pcs IR LED, Front USB Storage, POE Power Supply

WNIS36P IR IP Network CCTV Camera With 36pcs IR LED, Front USB Storage, POE Power Supply

  • WNIS36P IR IP Network CCTV Camera With 36pcs IR LED, Front USB Storage, POE Power Supply
WNIS36P IR IP Network CCTV Camera With 36pcs IR LED, Front USB Storage, POE Power Supply
Product Details:
Place of Origin: China
Brand Name: NEON
Certification: CE, FCC, RoHs
Model Number: WNIS36P
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Price: Depend on Resolution
Packaging Details: Packed in Carton
Delivery Time: 1 Week
Payment Terms: T/T; L/C; West Union
Supply Ability: 200,000 Set One Month
Contact Now
Detailed Product Description
High Light:

high speed dome camera

,

vandal proof security camera

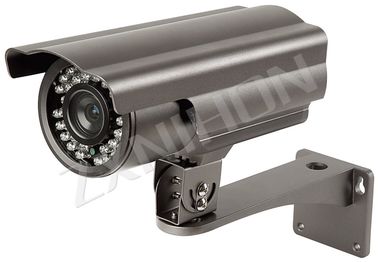

WNIS36P IR IP Network CCTV Camera With 36pcs IR LED, Front USB Storage, POE Power Supply

1) WNIS36P

IR waterproof IP Camera

36pcs IR LED,  30M IR Range

Lens: 4mm/6mm/8mm for optional
Support D1 Resolution
Built-in alarm,  audio input and output interfaces
Support front USB Storage
Support POE power supply
IP 66 waterproof rating



CCD Resolution CCD(P/N) DSP WDR OSD
LL3M 420TVL A1329CA/A1325CA A12152 - -
HH4M 420TVL RJ2421/RJ2411 LR38627 - -
HH3M 420TVL RJ2321/RJ2311 LR38603 - -
SS4M 420TVL 227AK/226AK CXD3142 - -
SS3M 420TVL 405AK/404AK CXD3142 - -
SN3D 470TVL 405AK/404AK NVP2010 - -
SN3OD 470TVL 405AK/404AK NVP2020 - OSD
SN3Q 520TVL 409AK/408AK NVP2010 - -
SS3H 500TVL 409AK/408AK CXD4103 - -
SN3OQA 520TVL 409AK/408AK NVP2040 - OSD
SS3Q 550TVL 409AK/408AK CXD3172 - -
HL3Q 500TVL RJ2362CA/RJ2352CA RJ7 - -
HL3OQ 500TVL RJ2362CA/RJ2352CA RJ9 D-WDR OSD
SL3Q 600TVL 639BK/638BK RJ7 - -
SL3OQ 600TVL 639BK/638BK RJ9 D-WDR OSD
SL3OQA 600TVL 639BK/638BK RJ10 D-WDR OSD
SFE3D 500TVL 633BK/632BK EFFIO-E D-WDR OSD
SFE3H 600TVL 639BK/638BK EFFIO-E D-WDR OSD
SFE3Q 700TVL 673BK/672BK EFFIO-E D-WDR OSD

Specifications
Module HH4M SS3M SN3OQA SL3OQ SL3OQA SFE3Q
Image Sensor

1/4" COLOR

SHARP CCD

1/3" COLOR SONY Super HAD CCD

1/3" COLOR SONY Super HAD CCD

1/3" COLOR SONY Super HADⅡ CCD

1/3" COLOR SONY Super HADⅡ CCD 1/3" COLOR SONY Super HADⅡ CCD
Signal System PAL/NTSC
Effective Pixels

PAL:

500(H)×582(V)

NTSC:

510(H)×492(V)

PAL:

500(H)×582(V)

NTSC:

510(H)×492(V)

PAL:

752(H)×582(V)

NTSC:

768(H)×494(V)

PAL:

752(H)×582(V)

NTSC:

768(H)×494(V)

PAL:

752(H)×582(V)

NTSC:

768(H)×494(V)

PAL:

976(H)×582(V)

NTSC:

976(H)×494(V)

Resolution    420TVL 420TVL 600TVL 600TVL 600TVL 700TVL
DAC 12Bit 9Bit 10Bit 10Bit 10Bit 12Bit
Minimum Illumination  0.5LUX/F1.2 0.1LUX/F1.2 0.1LUX/F1.2 0.01LUX/F1.2 0.01LUX/F1.2 0.01LUX/F1.2
S/N Ratio (Y signal)   Over 48dB Over 58dB
Electronic Shutter Speed 1/50-1/60, 000sec.(PAL), 1/60-1/60, 000sec.(NTSC)
WDR - - - D-WDR D-WDR D-WDR
DNR - - - 2D-DNR 3D-DNR 2D-DNR
OSD - - OSD OSD OSD OSD
White Balance Auto White Balance Auto White Balance/Manual White Balance/Auto Tracking White Balance
Gain Control AUTO Auto/Manual/Off
Backlight Compensation  ON ON/OFF
Gamma Correction 0.45
Synchronization   Internal
Video Output  1.0Vp-p, 75Ω
Power Source DC12V (9V ~ 15V)
Operating Temp. -20℃~60℃ / 10% ~ 95%RH
