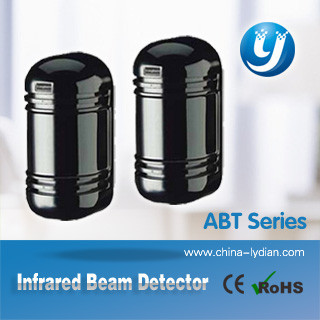

Outdoor Infrared Beams Detector

Outdoor Infrared Beams Detector

  • Outdoor Infrared Beams Detector
Outdoor Infrared Beams Detector
Product Details:
Place of Origin: Shenzhen, China
Brand Name: Lydian
Certification: CE
Model Number: ABT-20/30/40/60/80/100
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Click to get the latest price
Packaging Details: Gift Box or Blister Card
Delivery Time: 7-15 days after receipt of 30% T/T Deposit
Payment Terms: L/C,T/T
Supply Ability: 100000 Pieces per Month
Contact Now
Detailed Product Description
Beams: 2 Beams Response Speed: 50-700m/sec Adjustable
Alarm Output: 1C Relay Contact Output, Contact Capability DC30V/0.5A MAX Power And Voltage: DC 12-24V, AC 11-18V
Operation Current: 35mAmax/35mAmax/40mAmax/40mAmax/40mAmax/40mAmax/ Working Temperature: -25°c ~ +55 °c


Indoor / Outdoor / Home Security Infrared Dual Beams Motion Detector ABT-20



Description:

ABT-20/30/40/60/80/100 Beam Detector


l Dual beams

l Digital frequency conversion

l Active infrared detector

l Dual beams simultaneously blocked inspection

l Infrared LED lighting

l PC engineering plastic material

l Dew and frost proof solution: heating housing

l Other additional function: photic instruction, OK instruction, test terminal

Technical parameters:


Model

ABT-20L

ABT-30L

ABT-40L

ABT-60L

ABT-80L

ABT-100L

Detecting distance(outdoor)

20m

30m

40m

60m

80m

100m

Detecting distance(indoor)

60m

90m

120m

180m

240m

300m

Beams

2 Beams

Response speed

50-700m/sec adjustable

Alarm output

1C relay contact output, contact capability DC30V/0.5A MAX

Power and voltage

DC 12-24V, AC 11-18V

Operation current

35mAmax/35mAmax/40mAmax/40mAmax/40mAmax/40mAmax/

Working temperature

-25°c ~ +55 °c

Exterior dimension

Refer to relevant picture

Tamper output

1Bcontact output, DC30V/0.5A MAX

Optical axis adjust angle(Horizontal)

180°±90°


Optical axis adjust angle(vertical)

20°±10°


Weight: receiver

300g

Weight: transmitter

300g
