Saful 96 wireless zones 2 wired zones GSM security alarm system

Saful 96 wireless zones 2 wired zones GSM security alarm system

Introduction
The alarm system is a GSM domestic / commercial burglar alarm system, combined with advanced GSM digital signal processing technology, developed innovative intelligent alarm system GSM wireless mobile and traditional telecommunication network combining. It is highly integrated digital voice, English SMS, learning code wireless on, SMS recognition technology. Automatic voice or text messages to inform the police intelligence and site of the incident, stable, reliable, full hair, and humane control alarm. Functional and practical,costeffective, fully equipped, easy to operate. Wireless connection infrared &door detectors, smoke detectors, gas detectors, emergency buttons and other accessories. Widely used in homes, factories, schools, shops, convenience stores, financial room, villas, residential & other areas need protection. Protection of property from infringement.

Specifications
1. Wireless frequency: 315/433/868/915MHz,2262/1.5-4.7M,EV1527/300K
2. GSM frequency: 900/1800/850/1900MHz (quad band)
3. Standby Current:<25mA, Alarm current:<450mA
4. Power requirements: AC110V ~AC 240V, 50Hz/60Hz
Working consumption:< 0.6W
Backup battery: DC7.4V/850MA
Backup battery working hours: ≥8 hours
5. Working condition
temperature: -30°C~+60°C
humidity: ≤95% (non-condensation)
6. Siren loudness:15-110dB
7. Record time: 10s

Features
l. Voice prompts, easy to operate, can be installed GSM phone cards,two-way intercom function.
2. The host has 96 wireless zones, 2 wired zones, each zone has eight kinds of zone types to choose from, you can set up common zones, home zones, intelligent zone, emergency zone, closed zones,
doorbell zones, welcome zones, old guy for help defense zone.
3. 4 groups of timing arming and disarming function, eliminating the need for frequent phone arm and disarm,truly intelligent automatic control.
4. Phone, APP or SMS remote host system settings.
5. 8 groups voice alarm telephone,6 groups answering alarm sms number, zones can dial the preset number combination, not loss numbers if power off.
6. 10 seconds ISD automatic message recording. Recordings can be played back on the host, and embedded artificial voice, when remote to answer alarm,the user can know the location of police intelligence and anti-code.
7. Remote remote monitoring, propaganda function, and can remote phone or send text messages to the host arm, disarm operation.
8. Wireless intelligent learning accessories, learning the code quickly and easily, and millions compatible host group encoding 2262, can learn 10 pcs remote control and 96 pcs detectors.
9. Internal rechargeable battery, power backup battery and automatically converts SMS tips, you can manually switch;
10. Host using dual band, tri-band, quad-band frequencies GSM / GPRS industrial module, stable and reliable.
11. Siren's volume can be adjustable.
Schematic diagram

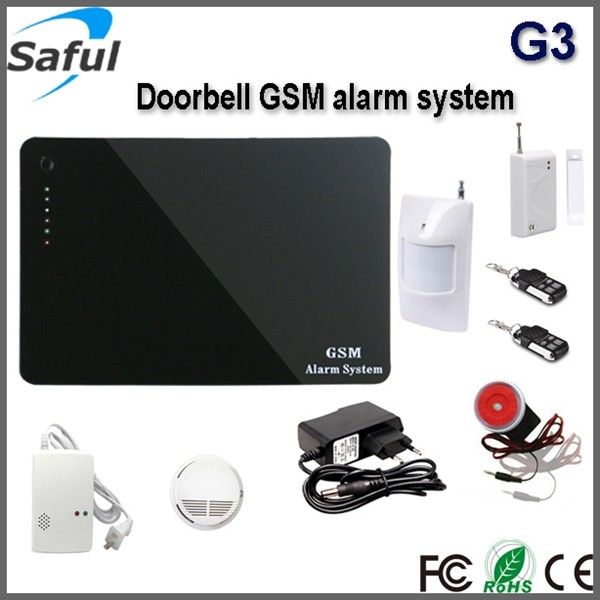

Pictures

Packaging
Main host x1
Wireless PIR sensor x1
Wireless door/windows sensor x1
Remote controller x2
Siren x1
Power adapter x1
