Demo Case Of TCP / IP Access Control Panel And Two FR1200 , Built In Power

Demo Case Of TCP / IP Access Control Panel And Two FR1200 , Built In Power

    • Demo Case Of  TCP / IP Access Control Panel  And Two FR1200 , Built In Power
  • Demo Case Of  TCP / IP Access Control Panel  And Two FR1200 , Built In Power

    Product Details:

    Place of Origin: China
    Brand Name: Granding
    Certification: CE/FCC
    Model Number: InBio460 DEMO CASE

    Payment & Shipping Terms:

    Minimum Order Quantity: 5pcs
    Packaging Details: Packed in carton ( wooden can be available if in special amount and requirement)
    Delivery Time: 2 working days after received your payment
    Payment Terms: T/T in advance
    Supply Ability: 5,000pcs per week
    Contact Now
    Detailed Product Description
    Product Name: RFID Card Access Control Panel DEMO CASE Communication: RS485, TCP/IP
    CPU: 32bit MIPS CPU Power Supply: DC 9.6V-14.4V
    LED Indicator: YES Card Capacity: 50,000
    Event Buffer: 200,000
    High Light:

    access control panel

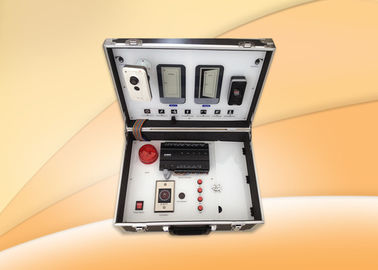

    Demo Case Of RFID Card Access Control Board And Two FR1200 , Built In Power



    Features:



    1. DEMO CASE with FULL function of one inBIO460

    door controller and two FR1200, built-in power

    supply, motion detector and alarm etc.;

    2. 4 exit buttion, 4 door sensor, 4 relay output, 4

    switch input; 1 SD card slot





    Specifications:



    Model

    inBIO460

    CPU

    32bit MIPS CPU

    RAM

    32M bits

    Flash Memory

    128M bits

    Fingerprint Capacity

    3000

    Card Capacity

    50,000

    Event Buffer

    200,000

    Power/Current

    DC 9.6V-14.4V, Rated Max 0.5A

    Wiegand Reader Port

    4nos. (26/34 bit Wiegand, 4/8bit Burs for PIN)

    RS485 Reader Port

    1no. Extended RS485 Port

    Communication

    RS485, TCP/IP

    Baud Rate

    38,400bps(Recommended)/9600bps,

    19,200bps(selectable)

    57,600bps(selectable)

    Input Port

    12nos.(Exit Button#1, Door Sensor#1; Exit Button#2,  Door Sensor#2; Exit Button#3, Door Sensor#3; Exit Button#4, Door Sensor#4,  4 Aux input)

    Output port

    4no.(4 FORM-C Relay Output, SPDT 5A@36VDC/8A@30VAC)



    4no.(4 Aux FORM-C Relay Output, SPDT 2A@30VDC)

    LED Indicator

    LED indication for communication, power, status and valid card read

    Operating Temperature

    0°C ~ 55°C

    Operating Humidity

    10% to 80% relative humidity non-condensing

    Dimension(H*W*D)mm

    226mm*106mm*36mm(single board)



    400mm*330mm*90.5mm(metal board)

    Software

    ZKAccess 3.5

    Demo Case Of  TCP / IP Access Control Panel  And Two FR1200 , Built In Power 0Demo Case Of  TCP / IP Access Control Panel  And Two FR1200 , Built In Power 1Demo Case Of  TCP / IP Access Control Panel  And Two FR1200 , Built In Power 2
