Product Details:
Place of Origin: China
Brand Name: Tongdazhi
Certification: CE
Model Number: TDZ-E601
Payment & Shipping Terms:
Minimum Order Quantity: 1 pair
Price: USD 1000-2500 per pair
Packaging Details: paper carton and wooden case
Delivery Time: 3-5 working days
Payment Terms: L/C, D/A, D/P, Western Union, T/T, MoneyGram
Supply Ability: 800pieces per month
Contact Now
Detailed Product Description
Structurer: 304 Stainless Steel Housing
High Light:

Train Turnstile


Mechanical Turnstile


Security access control system Drop Arm Barrier



Feature of the product:


1. Fault detection,user-friendly maintenance and use

2. Small button int the controler ,can be set state of equipment.

3. Pinch, anti bumps function, Blockage when in the process of the swing arm reset within a predetermined time, click stop working automatically, the default reset again after a delay, and the intensity is very small(2kg)

4. Scour protection function ,when the gate signal is not received, the stick is automatically locked

5. The door synchronization are adjustable(for double off gates situation)

6. With automatic reset function, gate, not prevailing within the stipulated time, the system will automatically cancel the access permissions of the user.

7. Normally open or closed can be freely adjusted to meet different venue requirements

8. Mount can be used with a variety of reading devices, work when it receive relay switch signal

9. One-way or two-way control personnel access

10. Directly through the remote management computer control and management

11. automatically reset automatic reset delay, the system default is 5 seconds after opening (adjustable)

12. Power failure emergency function after power channel automatically open, closed automatically after power-on, to meet the special needs of the user and the fire safety requirements

13. Sound (light) alarm function, containing illegal intrusion alarm (reverse broke into the Gate); etc.

14. Anti-pinch function (four pairs of infrared)

15. The precise logical judgment, infrared reset function (4 or 6 pairs of infrared)

16. The voice output,humane tips for correct password (optional)).

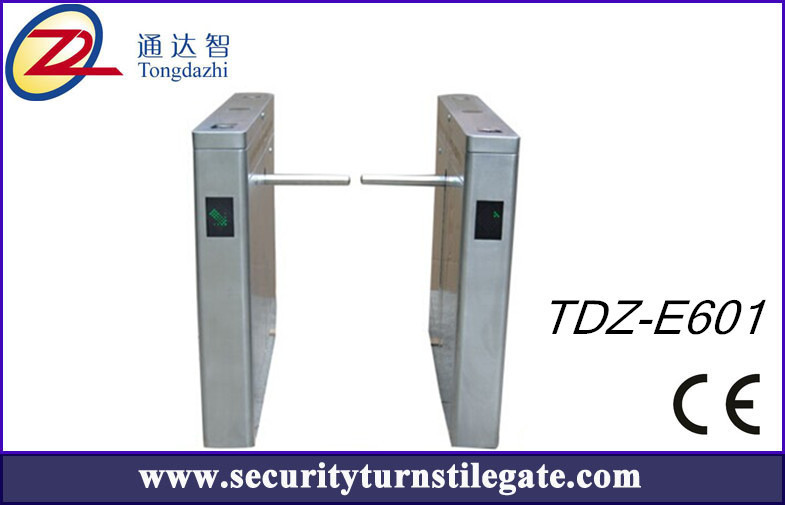

Access control Electronic Barrier Gates 0





1. Chassis material: domestic standard 304 stainless steel dimensions: 1200 L * 180 W * 1000 high (MM)

2. Swing direction:Single ,bi-directional

3. Power supply voltage: AC220 ± 10%V, 50HZ

4. Drive motor:Brushless DC motor 24V

5. Input interface:+DC 12V level signal or DC 12V pulse signal(pulse width>100ms)

   dirve current> 10 mA

6. Communication interface:RS485 electrical standard ,Distance ≤ 1200 meters

7. Prevailing speed:40 passengers/min(normally open)25-30 passengers/min(normally closed)

8. Gate opening/clearance time:1-2 seconds

9. Time required to enter the access state on power:3 seconds

10. Automatically reset the time after failure:10 seconds

11. Working environment: indoor and outdoor

12. Ambient temperature: -10 Celsius to 50 Celsius,Relative humidity: ≤90% no condensation
