20m Water Proof Photoelectric Beam Detector With Spherical Fresnel Lens

20m Water Proof Photoelectric Beam Detector With Spherical Fresnel Lens

  • 20m Water Proof Photoelectric Beam Detector With Spherical Fresnel Lens
  • 20m Water Proof Photoelectric Beam Detector With Spherical Fresnel Lens
  • 20m Water Proof Photoelectric Beam Detector With Spherical Fresnel Lens
  • 20m Water Proof Photoelectric Beam Detector With Spherical Fresnel Lens
20m Water Proof Photoelectric Beam Detector With Spherical Fresnel Lens
Product Details:
Place of Origin: China
Brand Name: Sunlit
Certification: CE
Model Number: STB-20
Payment & Shipping Terms:
Minimum Order Quantity: 1-99
Price: 14.00USD
Packaging Details: Gift box/ White box
Delivery Time: 1-15 days after payment
Payment Terms: FOB Shenzhen
Supply Ability: 20000/month
Contact Now
Detailed Product Description
Distance: 20/40/60/80/100m Lens: Spherical Fresnel Lens
Alarm Output Time: 1.5s Beams Adjustment: V: 20°(±10°) H: 180°(±90°)
Highlight:

Wireless alarms system



20m Water Proof Infrared 2 Photoelectric Beam Detector With Spherical Fresnel Lens For House Peremiter Protection



This detector is mainly for outdoor boundary protection used on wall, fence, entrance etc. Its filtering structure can avoid strong sunshine interference. The advanced thundering-defending system;digital beams and water/air/dust proof structure make it more dependable for outdoor usage.LED display for convenient calibration. PC housing can prevent vicious damage.Horizontal & vertical adjustment offers multi-directional protection.60m for outdoor detection.

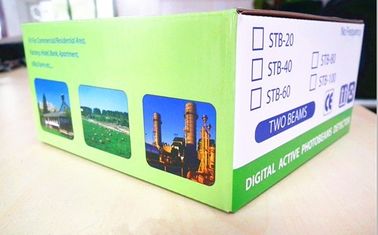

20m Water Proof Photoelectric Beam Detector With Spherical Fresnel Lens 0

Features:

* Adopts unique spherical Fresnel lens, more powerful in light focusing
* New filtering structure to multi-layer sundry lights, stronger capacity of anti-interference
* Multi-grade thundering-defending system, more dependable for outdoor usage
* Super stable digital two infrared beams with frequencies and pulse synchronization
* Fully airproof structure, effective water-proof, dustproof and insects-proof
* Beams response time adjustable, fit for various environments
* Integrative optical collimating mirror, more accurate and convenient adjustment
* LED display for calibration, convenient for installation and adjustment
* Adopts imported PC material with high strength for housing, more elegant and durable,better prevention for vicious damage
* Horizontal adjustment: 180°; vertical adjustment: 20°



Parameter:



Model

STB-20





Distance(outdoor)

20m







Operation current

40mA







Operation voltage

DC 10.8—18V

Lens

Spherical Fresnel lens

Response time

50—700ms

Alarm output time

1.5s

Alarm output contact

NO&NC

Alarm output capacity

1A/120V AC   2A/24V DC

Beams adjustment

V: 20°(±10°) H: 180°(±90°)

Operation temperature

-25°C～+55°C

Weight

600g

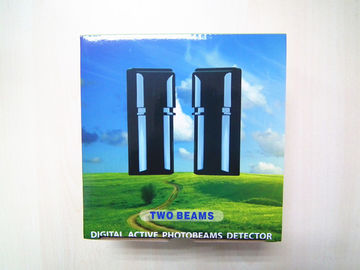

20m Water Proof Photoelectric Beam Detector With Spherical Fresnel Lens 1
