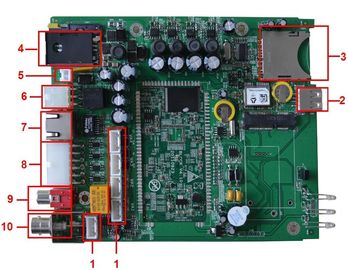

4ch 3G GPS DVR PCB Assembly Support 4ch Full D1 Realtime Recording
Features:
Ø Special function: Mobile Data, GPS Data, Wide Voltage, WIFI/3G, mobile DVR player, central manage client software, SDK etc..
Ø Compression Algorithm ideal: H.264 Main Profile
Ø Playback quality: 4ch full D1 realtime record,and multiple channels realtime playback synchronous.
Ø Main and Sub Stream: Dual Stream, Main stream is for local record , sub stream is for network transmission.
Ø Mobile monitor: Support iPhone, Windows Mobile, BlackBerry, Symbian,Android mobile monitor
Ø Display: Support TV
Ø Operation interface: Similar with WINDOWS, easy and convenient to operate it.
Ø Network: Powerful Network service(Support DAS, DHCP, PPPOE, FTP, DNS, DDNS, NTP, UPNP, EMAIL, IP permission, IP search, ALARM CENTER etc...), WEB, mobile CMS, SDK...
Ø Browsers: Support IE, Chrome,Firefox and Safari.
Ø Remote Access:Built-in DDNS(ARSP),dyndns,oray, myq-see, no-ip etc....
Ø Differentiation: boot screen free replacement,twenty multinational language,more than ten kinds of GUI interface,ten kinds of remote control,dozens of key-press panel for combination selection,easy to achieve product differentiation.
Ø Others: With the sound system for the protection circuit, unique triple watchdog function, very low power consumption, to ensure the equipment never be hang up. With the unique black box technology, can monitor the whole run process of the equipment, can greatly reduce the maintenance costs.
|
|
Model
|
NSTHbP3G-22873001
|
NSTHbPN-228733002
|
NSTHbPWG-228733003
|
|
System
|
CPU
|
High performance embedded microprocessor HuaWei HI3515
|
|
Operation System
|
Embedded LINUX
|
|
System Resource
|
Multiple channels realtime recording,playback,network operation and USB backup
|
|
Screen
|
User Interface
|
GUI,on-screen menu tips
|
|
Screen Display
|
1/4 screen
|
|
Video
|
Standard
|
PAL(625 line,50f/s); NTSC(525 line,60f/s)
|
|
Compression
|
H.264(Main Profile)
|
|
Display Quality
|
TV: D1
|
|
Playback Quality
|
D1/HD1/CIF/QCIF
|
|
Encode Capacity
|
100/120fps D1
|
|
Decode Capacity
|
50/60fps D1
|
|
Motion detect
|
Zones:396(22*18)detection zones,Sensitivity:1-6(6 is highest)
|
|
Audio
|
Compression
|
G711A
|
|
Talk back
|
Support
|
|
Record&
Playback
|
Record Mode
|
Manual>Alarm>Video Detection>Timing
|
|
Local Playback
|
1～4 channels
|
|
Record Search
|
Time/Date,Alarm,Motion Detection & exact search(accurate to second)
|
|
Storage&
Backup
|
HDD Occupation
|
Video: CIF 4~5G/day/channel, D1 16~20G/day/channel
Audio: 691.2M/day/channel
|
|
Record Storage
|
Network, SD card
|
|
Backup Mode
|
Network/USB movable HDD/USB DVD-RW/SATA DVD-RW/SD card
|
|
Interface
|
Video Input
|
4ch
|
|
Video Output
|
1ch BNC
|
|
Audio Input
|
4ch
|
|
Audio Output
|
1ch RCA(200-3000mV,5K)
|
|
Alarm Input
|
8ch(multiplexing car signals)
|
|
Alarm Output
|
1ch
|
|
Network
|
RJ45 10M/100M
|
|
PTZ
|
1 RS485
|
|
USB
|
1 USB
|
|
SD card
|
2 SD card (Max 2 x 32G,for regular record,redundancy record, backup, snapshot etc...)
|
|
GPIO
|
Support speed,turn light,brake signals input;vehicle information OSD overlay,storage etc...
|
|
Mobile Interface and Function
|
GPS
|
Built-in GPS module,Support GPS data overlay,timing etc...
|
Non-support
|
Built-in GPS module,Support GPS data overlay,timing etc...
|
|
WIFI/3G
|
3G module optional, support EVDO,WCDMA,TD-SCDMA, support auto registration and upload; perfect sub stream network transmitting to keep fluent and stable videos in remote monitoring.
|
Non-support
|
Built-in WIFI module(Ralink RT3070,reuse USB interface)
|
|
|
Others
|
Support timing and delay boot up/shut down
|
|
Complement
|
Player
|
Mobile DVR player,support google map,show vehicle running track and data
|
|
Platform
|
Support auto registration, no need router mapping,support google map,show vehicle running track and data
|
|
SDK
|
Free SDK for second development
|
|
Others
|
Power Supply
|
Wide voltage input 6V~40V
|
|
Power Consumption
|
<10W(not include HDD)
|
|
Working Temperature
|
0℃-＋55℃
|
|
Working Humidity
|
10%－90%
|
|
Atmosphere Pressure
|
86kpa－106kpa
|
|
Dimension
|
159mm * 131mm
|
|
Weight
|
150g
|
