home surveillance camera systems

Model

HIPC-A320W

Device Type

2.0 Megapixel CMOS sensor

Size

1/4

Day and Night

YES

Min.Scene Illumination

0.5lux(IR ON)

Infrared sensitivity

Support

Filter

IR-CUT

IR-led

YES

IR distance

8-10M

Lens

Lens

2.8MM

Focus

Fixed Lens

Aperture

Fixed Aperture F1.2

Viewing Angel

Horizontal 72°

Video

Compression

H.264

Picture Resolution

Main Flow: 1600*1200@15fps 1280*720@25fps

Minor Flow:640*360@25fps 160*112@25fps

Flow Type

Dual Stream encoding(H.264/MIPEG)

Bit Rate

32-4096kbps

Bit Rate Type

CBR/VBR

S/N Ratio

>50DB

Image enhancement

Auto White Balance,Backlight compensation,Brightness,Contrast,Saturation adjusted

Video Cover

4 Region can be set up

Superposition of words

User-defined

Flip Config

Up/down, Left/right

Audio/Alarm

Audio

Two way audio

Built-in MIC,External output device

Audio input/output

1-CH

Audio Compression

G.711/G.726

Alarm input/output

1-CH

Alarm way

Motion Detection

Alarm processing

The control center to monitor,Go to PTZ preset pos,Send E-mail, Log record,SD card storage etc.

Network

Protocl

TCP,UDP,IP,HTTP,SMTP,DHCP,DNS,DDNS,ARP,ICMP,SMTP,POP3,NTP,RTP, RTCP,Pelco-D

Ethernet

Ethernet (10/100 Base-T),RJ-45 connector

Safety

IP address filtering,User level password protection,The user access log

Software

WEB Browser

Microsoft Internet Explorer 6.0 and above,google,firefox etc.

Software Management

CMS and the devices Compatible with ONVIF

Software intelligence function

Motion detection,Miss object detection, Moving object tracking, counting, Retrograde motion detection, etc.

Event action

Files are stored to the back end equipment,Send E-mail,Send SMS,Zoom in alarm,Pop ap map ,Go to PTZ preset pos etc

Mobile Phone

Support iPhone,Android

Remote Access

DDNS,Software,P2P

Physical properties

Accessories

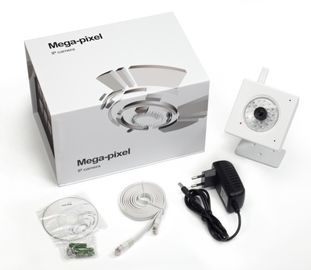

Power adapter, Network cable, Stand, Operation manual, CD, Screw bag

Power Comsumption

DC 5V/2A

Temperature

-10°C——60°C

Humidity

10%-80%

Weight

0.13KG

Dimension

109.97*85*42.9mm L*W*H

Certification

CE,FCC
