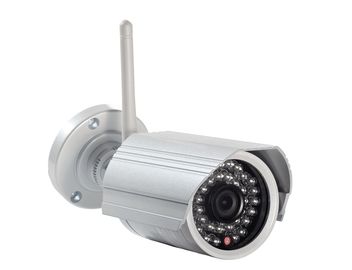

2.0 Megapixe IP Camera Home Security Surveillance Systems HIPC-A220W

2.0 Megapixe IP Camera Home Security Surveillance Systems HIPC-A220W

  • 2.0 Megapixe IP Camera Home Security Surveillance Systems HIPC-A220W
2.0 Megapixe IP Camera Home Security Surveillance Systems HIPC-A220W
Product Details:
Place of Origin: China
Brand Name: Fortunemount
Certification: CE FCC
Model Number: HIPC-A220W
Payment & Shipping Terms:
Minimum Order Quantity: 200
Delivery Time: 2 weeks for po with sales forecast and 4 weeks for po without sales forecast ; Offering flexible del
Payment Terms: T/T ; 30% prepayment upon po release and balance before shipment
Supply Ability: 50 000 monthly
Services: 24 hour quick response
Samples: sample orders for test are welcome
Contact Now
Detailed Product Description
Product Name: Home Security Surveillance Systems Device Type: 2.0 Megapixel CMOS Sensor
Size: 1/4 Min.Scene Illumination: 0.5lux(IR ON)
Video Compression: H.264 Audio: Two Way Audio
Highlight:

home surveillance camera systems



2.0 Megapixe IP Camera Home Security Surveillance Systems HIPC-A220W


Keywords: Household IP Camera, 2MP IP Camera, Wireless IP Camera, P2P IP Camera



Key Features

·2.0 Megapixel CMOS Sensor

·3.6MM Lens

·12 Led light ,8-10M Infrared Lamp Range

·H.264 Compression Format

·Support P2P

·Transmission up to 15FPS/2MP

·Support two way audio

·DC 5V,2A.

·support latest Onvif protocol



Model

HIPC-A220W



Device Type

2.0 Megapixel CMOS sensor



Size

1/4



Day and Night

YES



Min.Scene  Illumination

0.5lux(IR ON)



Infrared sensitivity

Support



Filter

IR-CUT



IR-led

YES



IR distance

8-10M

LENS







Lens

3.6MM



Focus

Fixed Lens



Aperture

Fixed Aperture F1.2



Viewing Angel



Horizontal 65°

Video







Compression

H.264



  Picture Resolution

Main Flow: 1600*1200@15fps   1280*720@25fps

Minor Flow:640*360@25fps      160*112@25fps



Flow Type

Dual Stream encoding(H.264/MIPEG)



Bit Rate

32-4096kbps



Bit Rate Type

CBR/VBR



S/N Ratio

>50DB



Image enhancement

Auto White Balance,Backlight compensation,Brightness,Contrast,Saturation adjusted



Video Cover

4 Region can be set up



Superposition of words

User-defined



Flip Config

Up/down, Left/right

Audio/ Alarm







Audio

Two way audio





External audio equipment



Audio input/output

1-CH



Audio  Compression

G.711/G.726



Alarm input/output

1-CH



Alarm way

Motion Detection



Alarm processing

The control center to monitor,Go to PTZ preset pos,Send E-mail, Log record,SD card storage etc.

Network







Protocal

TCP,UDP,IP,HTTP,SMTP,DHCP,DNS,DDNS,ARP,ICMP,SMTP,POP3,NTP,RTP, RTCP,Pelco-D



Ethernet

Ethernet (10/100 Base-T),RJ-45 connector



Safety

IP address filtering,User level password protection,The user access log

Software







WEB Browser

Microsoft Internet Explorer 6.0 and above,google,firefox etc.



Software Management

CMS and the devices Compatible with ONVIF



Software intelligence function

Motion detection,Miss object detection, Moving object tracking, counting, Retrograde motion detection, etc.



Event action

Files are stored to the back end equipment,Send E-mail,Send SMS,Zoom in alarm,Pop ap map ,Go to PTZ preset pos etc



Mobile Phone

Support iPhone,Android



Remote Access

DDNS,Software,P2P

Physical properties







Accessories

Power adapter, Network cable, Stand, Operation manual, CD, Screw bag



Power Comsumption

DC 5V/2A



Temperature

-10°C——60°C



Humidity

10%-80%



  Weight

0.5KG



Dimension



Φ59.84*155mm Dia*L





Certification

CE,FCC

Applicable   family, office, residential, factories
