WIfI NVK Kits Home Security Surveillance Systems NVK-B5004BW
Wifi NVR Kits Features:
· 4ch video input
· Support Wifi, Wifi NVR, Wifi Camera
· HD NVR Kits, 720P NVR, 720P Camera
· Support Mobile Viewing, include Iphone & Android OS
· Support P2P
· Camera Support 720 option

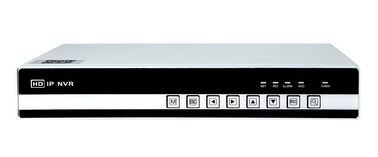

NVR Features:
· Operating System: LINUX
· Video Input:4CH 720P/4CH 960H IP camera
· Video Output: HDMI 1CH out; VGA 1CH out
· Audio Input/Output: 4 Audio input, 1CH RCA out ,RS485
· NVR can connect with IP camera and network video server
· live view, record, search file, backup
· Digital zoom (both in live view and playback)
· Resolution: 1080P(1920×1080)30fps/960P(1280×960)30fps/720P(1280×720)30fps
· Playback: Max suport 4ch960P or 2ch 1080P synchronously playback
· Support Onvif 2.0, RS485, Dual stream, 2 USB 2.0 port, WIFI
· Support iPhone, Windows Mobile, BlackBerry, Symbian, Android
· 1SATA interface Up to 2TB capacity
|
Model
|
NVR-B5104W
|
|
Operating System
|
Embedded LINUX operating system
|
|
Image Code Control
|
Image code quality adjustable,
variable bitstream and constant bitstream optional
|
|
Dual Stream
|
Each channel can set main stream and sub stream
|
|
Video Standard
|
1080P(1920×1080)@30fps
720P(1280×720)@30fps
|
|
Monitoring Image Quality
|
1080P(1920×1080)
720P(1280×720)
|
|
Image Motion Detection
|
Each screen can set mutiple detection areas
and set 6-level sensitivity
|
|
Recording Playback Quality
|
Any 4ch 1080P/720P playback simultaneously
|
|
Region Cover
|
Every channel can set 4 cover regions
|
|
Recording Mode
|
Support manual , auto, dynamic detection,
alarm trigger record mode
|
|
Backup Way
|
Support U disk, USB mobile HDD, USB DVD-RW .
network storage and backup
|
|
Operation Way
|
Mouse, remote control, front panel, keyboard controller
|
|
Local Login
|
User name and password
|
|
Recording Storage
|
Local HDD, network
|
|
External
Ports
|
Video Input
|
1×(1920*1080) +3×(1280*720) IP camera
|
|
Audio Input
|
4ch network audio input
|
|
Video Output
|
1ch VGA+1ch HDMI
|
|
Audio Output
|
1ch BNC auxiliary output
|
|
Network Port
|
1 RJ45,10M/100M/1000M self-adaptive LAN port
|
|
RS485 Port
|
Full duplex standard 485 port,
support 19 kinds of PTZ protocols
|
|
USB Port
|
3 USB 2.0 ports(one on front panel, two on rear panel)
|
|
Alarm Input
|
4ch
|
|
Alarm Output
|
1ch
|
|
Wireless Port
|
3G,WIFI
|
|
HDD
|
HDD Port
|
2 SATA HDD port/1 SATA+1 E-SATA
|
|
MAX Capacity
|
Each port supports MAX 3TB HDD
|
|
Mobile Surveillance
|
Support( iPhone, Windows Mobile, BlackBerry, Symbian, Android) smart phone
|
|
Power Supply
|
12V4A
|
|
Power Consumption
|
≤25(without HDD)
|
|
Working Temperature
|
-10℃～＋55℃
|
|
Working Humidity
|
10％-90％
|
|
Dimension
|
Equipment: 350mm×240mm×70mm,
Packing: 409mm×365mm×129mm
|
|
Wight(without HDD)
|
N.W.: 1.7Kg；
with packing:2.89Kg
|
|
Otside Carton
|
5pcs/carton.
675mm×425mm×385mm；
weight: 15.22 Kg.
|
|
Istallation Way
|
Desktop installation
|

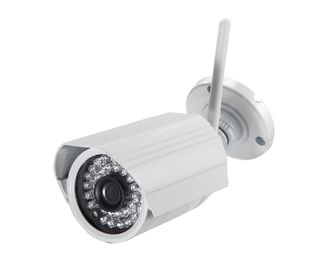

Wireless IP Camera Features:
• H.264 compression format, MJPEG Baseline
• 1.0 Megapixel Resolution,Support 720P(1280*720)
• Dual Stream, resolution, bit rate adjustable
• 4mm 2Mega Pixel Lens
• Freely control zoom by software(PC or Smart phone)
• Built-in IR-CUT, auto-switch day and night, IR Range 20m
• Motion detection recording , alert with snapshots via email (without SSL)
• Build-in Privacy Mask , image snapshot , Title OSD , DDNS
• Support RTSP Compatible with IMAC Media PlayerOnvif Compliant, Support NVR from Milestone/Axxon/NUUO/geovision/synology/Hikvision/Dahua/Kodak
• Support iPhone/iPad/Android Smart Phone
• Support IE6.0~8.0, Firefox, Google chrome browser
• Support up to 10 users online simultaneously
• IP66 Rated Waterproof & Vandalproof, Outdoor Use
• Free CMS Software, paid Software for optional
• Support P2P,ONVIF 2.3,Push Video
|
Model
|
IPC-B610W
|
|
Sensor
|
1.0 Megapixel CMOS Sensor
|
|
Size
|
1/3 inch
|
|
Effective Pixels
|
720P:1280*720
|
|
Minimum illumination
|
0.15 LUX
|
|
B/W
|
Yes
|
|
Infrared sensitivity
|
Yes
|
|
Filter
|
Yes
|
|
Camera lens
|
24PCS LENS 4/6 mm
|
|
Visual angle
|
85°/55° (Horizontal)
|
|
Infrared distance
|
20-30 M
|
|
Motion detection
|
Yes
|
|
Electronic shutter
|
1/5-1/15,000 sec
|
|
Backlight compensation
|
Yes
|
|
Aperture
|
Auto
|
|
White balance
|
Auto
|
|
S/N Ratio
|
.>50 dB
|
|
Video compression Format
|
H.264
|
|
Picture sharpness
|
720P:1280*720
|
|
Bit rate
|
80 K~ 2.0 M bps
|
|
Image frequency
|
30FPS
|
|
Audio Compression
|
ON
|
|
Two-way audio
|
ON
|
|
Alarm I/O
|
ON
|
|
Mount types
|
Wall Bracket
|
|
Ethernet
|
Ethernet (10/100 Base-T),RJ-45 connector
|
|
Protocol
|
TCP,UDP,IP,HTTP,FTP,SMTP,DHCP,DNS,
ARP,ICMP,POP3,NTP,RTP, and RTCP
|
|
Web Browser
|
Microsoft Internet Explorer 6.0 above
|
|
SDK
|
SDK-H
|
|
Safety
|
Administrator password protection
|
|
Temperature
|
-30°~60°C
|
|
Humidity
|
-10~85%
|
|
Power requirement
|
PoE (IEEE802.3af)
|
|
Specification of power supply
|
10-12W (DC 12V,1A)
|
