HIGH QUALITY, BEST SERVICE,REASONABLE PRICE.
 |
| Place of Origin: | Shenzhen, China |
| Brand Name: | Lydian |
| Certification: | CE |
| Model Number: | ABH-50/100/150/200/250 |
| Minimum Order Quantity: | 1PCS |
|---|---|
| Price: | Click to get the latest price |
| Packaging Details: | Gift Box or Blister Card |
| Delivery Time: | 7-15 days after receipt of 30% T/T Deposit |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000 Pieces per Month |
| Beams: | 4 Beams | Response Speed: | 50-700m/sec Adjustable |
|---|---|---|---|
| Power And Voltage: | DC 12-24V, AC 11-18V | Operation Current: | 95mA/100mA/100mA/105mA/105mA |
| Working Temperature: | -25°c ~ +55 °c | Tamper Output: | 1Bcontact Output, DC30V/0.5A MAX |
| High Light: | infrared beam motion detector,infrared motion detector |
||

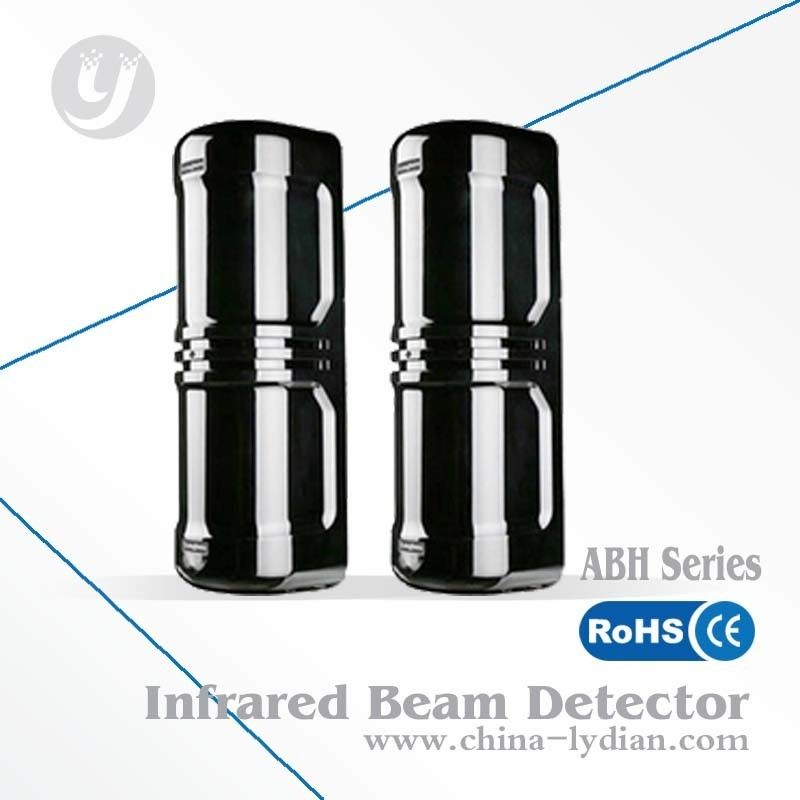

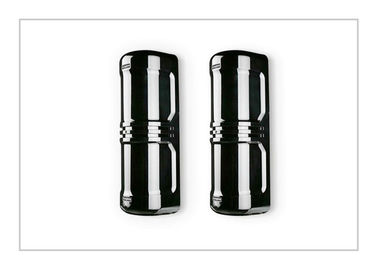

Digital Quadruple Beams Infrared Beam Detector With Multi-Level Led Indicator Abh Series
Description:
ABH-50/100/150/200/250 Quadruple Beams Detector
Quadruple beams
Digital frequency conversion
Active infrared detector
Quadruple beams simultaneously blocked inspection
Infrared LED lighting
Window sighting telescope
PC engineering plastic material
Dew and frost proof solution: heating housing
Other additional function: photic instruction, OK instruction, test terminal, multi-level LED indicator
Technical parameters
|
Model |
ABH-50 |
ABH-100 |
ABH-150 |
ABH-200 |
ABH-250 |
|
Detecting distance(outdoor) |
50m |
100m |
150m |
200m |
250m |
|
Detecting distance(indoor) |
150m |
300m |
450m |
600m |
750m |
|
Beams |
4 Beams |
||||
|
Response speed |
50-700m/sec adjustable |
||||
|
Alarm output |
1C relay contact output, contact capability DC30V/0.5A MAX |
||||
|
Power and voltage |
DC 12-24V, AC 11-18V |
||||
|
Operation current |
95mA/100mA/100mA/105mA/105mA |
||||
|
Working temperature |
-25°c ~ +55 °c |
||||
|
Exterior dimension |
Refer to relevant picture |
||||
|
Tamper output |
1Bcontact output, DC30V/0.5A MAX |
||||
|
Optical axis adjust angle(Horizontal) |
180°±90°
|
||||
|
Optical axis adjust angle(vertical) |
20°±10°
|
||||
