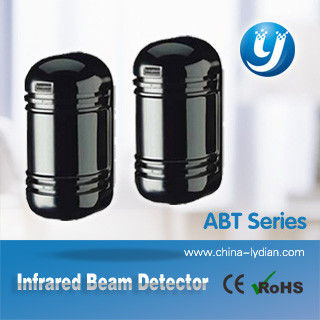

Infrared Beam Detector Photoelectric Alarm Home Yard Door Alarm

Infrared Beam Detector Photoelectric Alarm Home Yard Door Alarm

  • Infrared Beam Detector Photoelectric Alarm Home Yard Door Alarm
Infrared Beam Detector Photoelectric Alarm Home Yard Door Alarm
Product Details:
Place of Origin: Shenzhen, China
Brand Name: Lydian
Certification: CE
Model Number: ABT-50/75/100/125/150/180/200/250
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: Click to get the latest price
Packaging Details: Gift Box or Blister Card
Delivery Time: 7-15 days after receipt of 30% T/T Deposit
Payment Terms: L/C,T/T
Supply Ability: 100000 Pieces per Month
Contact Now
Detailed Product Description
Highlight:

outdoor beam detector

Infrared Beam Detector Photoelectric Alarm Home Yard Door Alarm


Description:







l Dual beams



l Digital frequency conversion



l Active infrared detector



l Dual beams simultaneously blocked inspection



l Infrared LED lighting



l PC engineering plastic material



l Dew and frost proof solution: heating housing



l Other additional function: photic instruction, OK instruction, test terminal







Specifications:



Model ABT-20L ABT-30L ABT-40L ABT-60L ABT-80L ABT-100L
Detecting distance(outdoor) 20m 30m 40m 60m 80m 100m
Detecting distance(indoor) 60m 90m 120m 180m 240m 300m
Beams 2 Beams
Response speed 50-700m/sec adjustable
Alarm output 1C relay contact output, contact capability DC30V/0.5A MAX
Power and voltage DC 12-24V, AC 11-18V
Operation current 35mAmax/35mAmax/40mAmax/40mAmax/40mAmax/40mAmax/
Working temperature -25°c ~ +55 °c
Exterior dimension Refer to relevant picture
Tamper output 1Bcontact output, DC30V/0.5A MAX
Optical axis adjust angle(Horizontal)

180°±90°


Optical axis adjust angle(vertical)

20°±10°


Weight: receiver 300g
Weight: transmitter 300g



Infrared Beam Detector Photoelectric Alarm Home Yard Door Alarm 0



Competitive Advantage:



* Professional experience and ability to accept and fulfill ODM/OEM orders.

* Answer your enquiries, questions and emails in 24 hours.

* Direct control on material, testing, quality, lead time ect.

* Flexible Payment terms ranged at different quantity

* One year warranty life for all detectors sold out from Lydian
