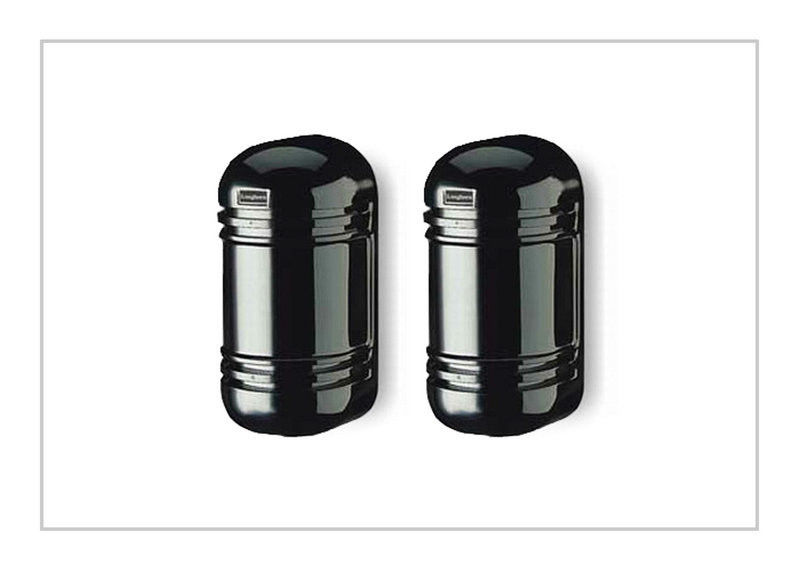

Outdoor Active Infrared Beam Detector / Photoelectric Infrared Beam Sensor With Led Lighting ABT Series

Outdoor Active Infrared Beam Detector / Photoelectric Infrared Beam Sensor With Led Lighting ABT Series

  • Outdoor Active Infrared Beam Detector / Photoelectric Infrared Beam Sensor With Led Lighting ABT Series
Outdoor Active Infrared Beam Detector / Photoelectric Infrared Beam Sensor With Led Lighting ABT Series
Product Details:
Place of Origin: Shenzhen, China
Brand Name: Lydian
Certification: CE
Model Number: ABT-20/30/40/60/80/100
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: Click to get the latest price
Packaging Details: Gift Box or Blister Card
Delivery Time: 7-15 days after receipt of 30% T/T Deposit
Payment Terms: L/C,T/T
Supply Ability: 100000 Pieces per Month
Contact Now
Detailed Product Description
Highlight:

infrared beam motion detector




Outdoor Active Infrared Beam Detector / Photoelectric Infrared Beam Sensor
With Led Lighting ABT Series


Description:



ABT-20/30/40/60/80/100 Beam Detector



l Dual beams

l Digital frequency conversion

l Active infrared detector

l Dual beams simultaneously blocked inspection

l Infrared LED lighting

l PC engineering plastic material

l Dew and frost proof solution: heating housing

l Other additional function: photic instruction, OK instruction, test terminal



Technical parameters:



Model

ABT-20L

ABT-30L

ABT-40L

ABT-60L

ABT-80L

ABT-100L

Detecting distance(outdoor)

20m

30m

40m

60m

80m

100m

Detecting distance(indoor)

60m

90m

120m

180m

240m

300m

Beams

2 Beams

Response speed

50-700m/sec adjustable

Alarm output

1C relay contact output, contact capability DC30V/0.5A MAX

Power and voltage

DC 12-24V, AC 11-18V

Operation current

35mAmax/35mAmax/40mAmax/40mAmax/40mAmax/40mAmax/

Working temperature

-25°c ~ +55 °c

Exterior dimension

Refer to relevant picture

Tamper output

1Bcontact output, DC30V/0.5A MAX

Optical axis adjust angle(Horizontal)

180°±90°



Optical axis adjust angle(vertical)

20°±10°



Weight: receiver

300g

Weight: transmitter

300g



Tag:

beam detector,

beam sensor,

infrared beam motion detector
