HIGH QUALITY, BEST SERVICE,REASONABLE PRICE.
 |
| Place of Origin: | China |
| Brand Name: | GRAIGAR OR OEM |
| Certification: | CE/ROHS/SGS/ISO9001 |
| Model Number: | K60-IV |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | negotiation |

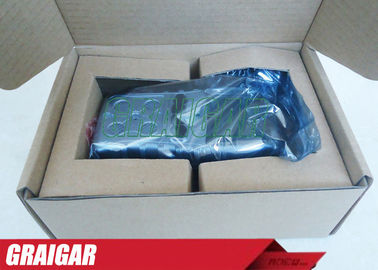

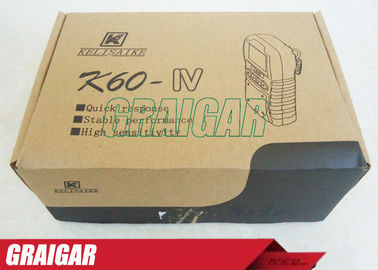

| Packaging Details: | Packed in inner box firstly, and then reinforced with export carton for outer packing |
| Delivery Time: | 2 working days after received the payment |
| Payment Terms: | T/T, Western Union, Paypal, L/C, MoneyGram |
| Supply Ability: | 3000 pieces per month |

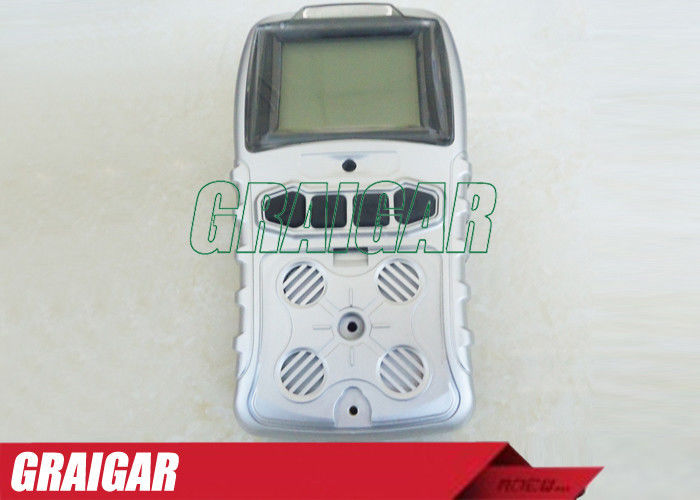

| Product Name: | K60-IV GAS DETECTOR | Sampling: | Pump, Diffusion |
|---|---|---|---|
| Relative Humidity: | 15%~90% RH (non-condensing) | Working Temperature: | - 10 °C ~ + 44 °C |
| Power: | 3.7V Rechargeable Lithium Battery, Continuously Work For Over 10 Hours | Sensor Service Time: | One Year For Combustible Gas Sensor; Two Years For Oxygen And Toxic Gases Sensors |
| Display Mode: | LCD Display | Alarm Mode: | Acousto Optic Alarm |
| Explosion-proof Grade: | ExibIIC T3 | Dimension: | 133 L×70 W×36 H Mm (52.4" X27.6" X14.2") |
| Weight: | Approx. 300g | ||
| High Light: | analyzer equipment,analyzer meter |
||
Key Features
1) Light weight and small size design(less than 300g), easy to operate
2) Excellent built-in vibration alert for use in areas of high ambient noiseapplications
3) 90dB audible vibration alarm
4) Strong, protective, concussion-proof shockproof design for normal working in harsh enviroments
5) Easy access to pump, sensors, filter and battery compartment without exposing electronic components to potential damage
6) Rechargeable lithium battery for over 10 hours continuously operation
7) Intuitive simple-to-operate four-button
8) User interface with built-in pump
9) 2+2 digits LCD real time displays gas concentration and corresponding gas types
10) Full featured self-test:sensors, lithium battery, circute integrity and acousto optic vibration alarm function
11) Accessories:operator’s manual, calibration hose, charger and conversion plug
12) CERTIFICATIONS: CMC,Ex,MA (SAFETY CERTIFICATE OF APPROVAL FOR COAL MINING PRODUCTS IN CHINA)
Technical Specification
|
Dimension |
133 L×70 W×36 H mm (52.4" x27.6" x14.2") |
|
Weight |
Approx. 300g |
|
Sampling |
Pump, diffusion |
|
Working Temperature |
- 10 °C ~ + 44 °C |
|
Relative Humidity |
15%~90% RH (non-condensing) |
|
Power |
3.7V rechargeable lithium battery, continuously work for over 10 hours |
|
Sensor Service time |
One year for combustible gas sensor; two years for oxygen and toxic gases sensors |
|
Display |
LCD display |
|
Alarm Mode |
Acousto optic alarm |
|
Explosion-proof Grade |
ExibIIC T3 |
|
Warranty |
1 year |
|
GAS TYPE |
DETECTION RANGE |
RESOLUTION |
RESPONSE TIME |
|
O2 |
0-30%Vol |
0.1%Vol |
T90≤15s |
|
CH4 |
0-100%LEL |
0.1%LEL |
T90≤5s |
|
CO |
0-1999ppm |
1ppm |
T90≤25s |
|
H2S |
0-1999.9ppm |
0.1ppm |
T90≤30s |
