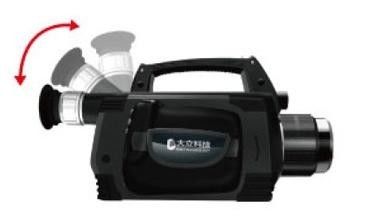

Industry Gas Detection Camera , Handheld Infrared Gas Detector
Quick Detail:
Place of Origin: Zhejiang, China (Mainland)
Brand Name: DALI.
Model Number:GF706.
Usage: Industrial
Theory: Infrared Thermometer
Detector type: Cooled QWIP detector
Array size: 320x256
IFOV: 1.79mrad/1.13mrad
Thermal sensitivity: ≤0.025°C@30°C
Frame frequency: 50Hz
Focus: Auto/ manual/motorize
Zoom: 1-4x electronic zoom
Spectral range: 9.8-11.2um
Encapsulation: IP54
Description:
◆ 320x256 cooled QWIP detector
◆ High thermal sensitivity: ≤0.025°C@30°C
◆ 1-4x electronic zoom
◆ Auto/manual/motorize focus
◆ 1.3 million CCD camera
◆ 5 million color digital touch screen
◆ Fusion display of IR & daylight image
◆ 8G SD card
◆ 40s voice annotation
◆ IP54 encapsulation
Applications:
Electrical power industry
Circuit breaker
Insulation failure
Loose interface detection
HVAC detective
Component detective
Repair verification
Specifications:
| Items |
Technical Specification |
| GF706 |
| Detector characteristics |
Detector type |
Cooled QWIP detector |
| Array size/format |
320x256 |
| Image characteristics |
Field of view/min focus distance |
14.5°×10.8°/0.5m |
| Spatial resolution(IFOV) |
0.79mrad |
| Thermal sensitivity |
≤0.025℃@30℃ |
| Frame frequency |
60Hz |
| Focus |
Auto/manual/motorize |
| Zoom |
1-4x electronic zoom |
| Spectral range |
9.8-11.2um,peak 10.55um |
| Built-in CCD camera |
1.3 million COMS |
| Image display |
View finder |
HD 0.6'' color OLED,with zoom |
| LCD |
HD 5'' digital touch screen,800x600 |
| Measurement |
Temperature ranges |
-40℃- +500℃ |
| Accuracy |
± 2 °C or ± 2% of reading, Whichever is greater |
| Measurement correction |
Automatic / manual |
| Measurement mode |
Up to 10 movable spots. Up to 5 movable areas(maximum, minimum and average temperatures). Up to 2 movable lines. Line profile. Isotherms. Temperature difference. Alarm(voice, color) |
| Image control |
Color palette 11palettes changeable |
| Image adjustment Auto/manual gain and brightness |
| Setup functions |
Date/time, temperature unit ℃/℉/K, language |
| Emissivity correction |
Variable from 0.01 to 1.0 |
| Background temperature correction |
Automatic corrections according to user input |
| Atmospheric transmission correction |
Automatic correction according to user input object distance, humidity and temperature |
| Image storage |
Storage card |
8G SD card,storage>6000 |
| Storage mode |
Manual/Auto single-frame image storage,continuous visiable,infrared video recording |
| File format |
IR image:1.single frame JPEG 14bit thermal image with measurement data.2.video:MPEG-4 or 14 bit thermal image with measurement data visual image:1.single frame:JPEG 2.video:MPEG-4 |
| Image improvement |
Averaging(S2,S6,S8,S16),spatial filter |
| Voice annotation |
40 seconds,saved together with the image |
| Laser pointer |
Laser locator |
Class 2, 1mw/635nm(red), IEC 60 285 |
| Power source |
Battery type |
Li-Ion, rechargeable |
| Battery operating time |
3 hours continuous operation |
| Battery charging mode |
Intelligent charger or power adaptor (optional) to random charge |
| Power saving |
Auto-sleep and auto-shut down |
| External power |
10-15V DC |
| Environment |
Operating temperature |
-15℃-- +50℃ |
| Humidity |
Operating and storage:≤90％ non-condensing |
| Encapsulation |
IP54 |
| Physical characteristics |
Weight |
3kg |
| Dimension |
335x160x172mm |
| Interface |
External DC input |
YES |
| Audio output |
YES |
| Video output |
HDMI |
| USB2.0 |
Image, measurement data transfer to PC |
Competitive Advantage:
◆ Two gas leakage detection mode
◆ No specific background and auxiliary light needed, suitable for many onsite checking
◆ HD OLED view finder, combined with 5’’ touch screen, suitable for many onsite checking
◆ Have voice and video function
◆ Detect multi gas: sulfur hexafluoride, ammonia, cyanoacrylate, chlorine dioxide, acetic acid, FREON-12,etc.
