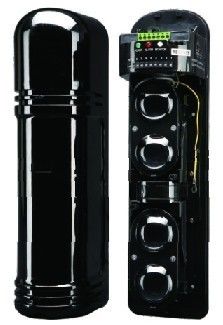

beams Sensor

Product Description

1. Anti strong light up to 50000LUX, built-in auto adjustment filtering system, avoid the interference strong light and car spotlight.
2. Unique optical design: The optical beams could penetrate through multilayer glass, strong resistance to external interference.
3. Integrative structure for waterproof, dustproof and mothproof
4. Adopted the large caliber non-sphere four focus coaxial optic lens, and fresnel lens optical.
5. Strong function of RFI & EMI.
6. Using the multilevel LED, solve the trouble of interference by the
7. Detecting distance: Depending on different models ( please refer to the following form)
Model ABH-50ABH-100ABH-150ABH-200ABH-250ABH-300
Alarm distanceindoor50m 100m 150m 200m 250m 300m
Outdoor150m 300m 450m 600m 750m 900m
Maximum distance600m 1200m 1800m 2400m 3000m 3300m
Number of beams4 beams
Way of detectiondetect when all 4 beams are cut
Light sourceIR LED
Detecting speed 50 -700 msec
Alarm outputrelay port output, port capacity: ACDC30V0.5Amax
Power supplyDC12 -18 V
Current40mAmax 55mAmax
Operating temperature- 25 -55c
Tamper outputDC30V0.5 Amax.
Horizontal angle180° ± 90 °
Vertical angel20° ± 10 °
MaterialPC& ABS
Weight300g/pc for sender or receiver each
