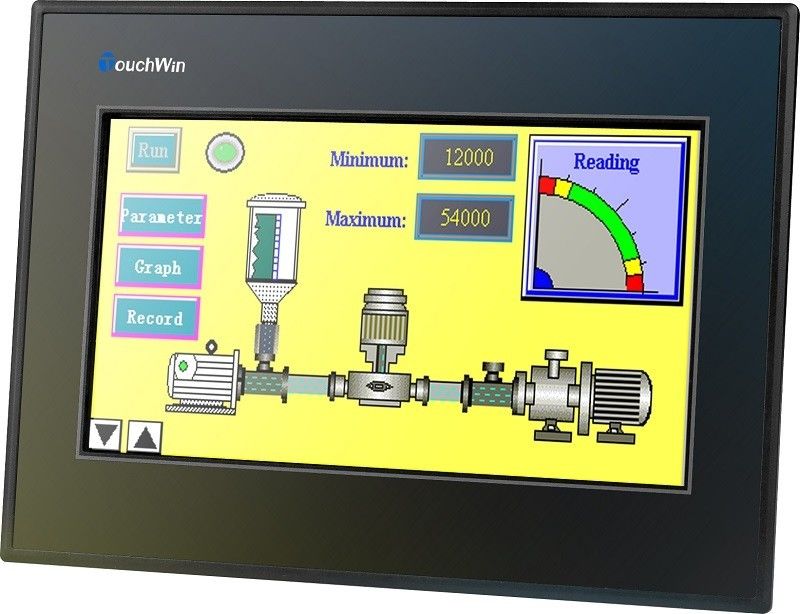

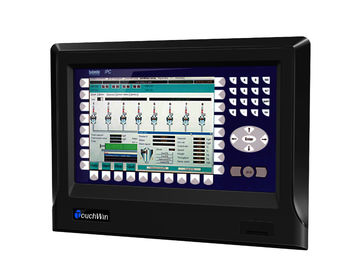

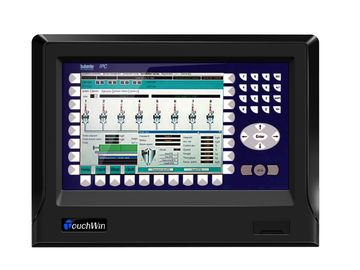

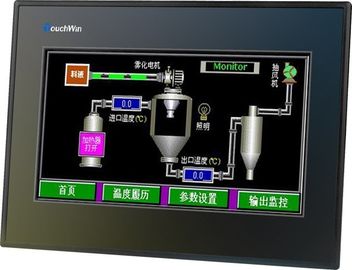

256 Colors Touch Screen PLC With HMI Human Machine Interface Power Supply DC 24V

256 Colors Touch Screen PLC With HMI Human Machine Interface Power Supply DC 24V

  • 256 Colors Touch Screen PLC With HMI Human Machine Interface Power Supply DC 24V
256 Colors Touch Screen PLC With HMI Human Machine Interface Power Supply DC 24V
Product Details:
Place of Origin: China
Brand Name: XINJE
Certification: CE, ISO9001
Model Number: TP760-T
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: negotiation
Packaging Details: Carton
Delivery Time: 3-7 days
Payment Terms: T/T in advance
Supply Ability: 1000PCS/month
Contact Now
Detailed Product Description
High Light:

touch screen hmi with plc

,

hmi touch panel

Touch Screen PLC / HMI PLC Automation System Communicate





Quick Detail:



  1. 7 inch 256 colors LCD,

  2. power supply DC24V,

  3. TP series touch screen HMI (human machine interface)

  4. can communicate with most brand of PLC models.





Description:

1. 7 inch 256 color LCD,

2. 480*234 pixels, 4MB FlashROM, 4KB SRAM
3. With data display , data monitor, alarm, recipe  functions
4. Support various popular PLC, two serial communication ports
5. Programming easy with Touchwin software







Specifications:



Electrical
Features
Input Voltage
DC22-DC26V
Current Consumption
<150mA
Allowable Momentary Power-cut
Less than 20ms
Voltage Endurance
AC1000V-10mA for 1 minute
Insulated Resistance
DC500V-about 10MΩ
Interfaces
Communication Port
RS-232/RS-422/RS-485
Download Port
RS-232
Environment
Operation Temperature
0-50℃
Storage Temperature
-20-60℃
Ambient Humidity
20-85%
Vibration Resistance
10-25HZ
Interference Rejection
Noise voltage: 1000Vp-p, Pulse cycle:1us, Duration: 1minute
Atmosphere
Free of corrosive gas
Protect Configuration
IP65
Screen properties
Type
256 color TFT
Screen Size
7 inch
Lifetime
Above 50000 hours,Environmental temperature 25℃24 hours operating
Display area
480*234
Brightness
Can not be adjusted
Languages
English, Japanese, German, etc.
Font & Size
Optional font, Optional size
Touch Panel
Digital matrix
Memory
Screen
4MB
Data
4KB
Structure
Cooling method
Natural air cooling
External Dimensions
200.0*148.0*44.4(mm)
Cutout Dimensions
182.4*134.4(mm)

























Applications:



TP series HMI can communicate with most brand of PLC, such as Siemens, Mitsubishi, Delta, Omron, AB and so on. It also can communicate with frequency inverter and other devices.
