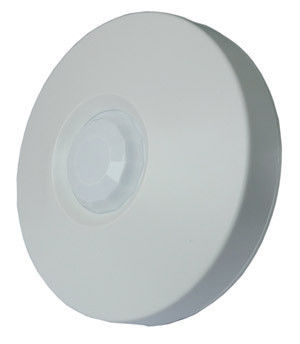

Ceiling mount MW+PIR motion detector with and/or selection

Ceiling mount MW+PIR motion detector with and/or selection

  • Ceiling mount MW+PIR motion detector with and/or selection
Ceiling mount MW+PIR motion detector with and/or selection
Product Details:
Place of Origin: China
Brand Name: Sunlit
Certification: CE
Model Number: CL-40D
Payment & Shipping Terms:
Minimum Order Quantity: 1-99
Packaging Details: Gift box/ White box
Delivery Time: 1-15days after payment
Payment Terms: FOB Shenzhen
Supply Ability: 2000/month
Contact Now
Detailed Product Description
Detection Distance: H=2.4m 7m*7m 360° MW Frequency: 10.525GHz
Operation Voltage/current: 9-16V/DC 20mA
Highlight:

motion detector alarm



Ceiling mount MW+PIR detector with and/or selection

Ceiling mount MW+PIR motion detector with and/or selection 0
Features:
* DRO micro radar and dual element PIR detection technology.
* Adopt intelligent multi-grade signal process software technology, full analysis and process to various false alarms.
* Adopt micro power-consumption 8-digit CMOS single-chip control.
* Digital analysis pet immunity technology
* 3-color LED display,signals of PIR, MW and trouble can be displayed separately.
* AND,OR,EI modes for option for different environment.
* MW range can be adjusted continuously.
* With selection for high/low sensitivity.
* Unique full-range temperature compensation technology.
* Anti strong electro-magnetic radiation interference.



Ceiling mount MW+PIR motion detector with and/or selection 1



Parameter:

Operation voltage/current 9-16V/DC 20mA
Detection distance H=2.4m 7m*7m 360°
Installation height 2.2m-4.5m
MW frequency 10.525GHz
Sensitivity L/H for option
RFI/EMI protection >3V/m 500MHz
Alarm output 100mA/24V
Tamper output 300mA/24V
Operation temperature -20℃/+40℃
Operation humidity 5%-95%(RH)
Anti white light >10000LUX
Operation mode EI, dual-tech or single-tech alarm modes for option
Detection speed 0.2m/s to 3.5m/s
