Place of Origin: | Shenzhen,China |
Brand Name: | Integer |
Certification: | CE, ISO, SGS |
Model Number: | IBG-401 |
Minimum Order Quantity: | 1 unit |
---|---|
Price: | negotiation |
Packaging Details: | Carton(1 unit): 1020*375*467mm |
Delivery Time: | 5~15 |
Payment Terms: | T/T |
Supply Ability: | 3000units per month |
Model: | IBG-401 | Color: | Red |
---|---|---|---|
Weight: | 60kg | Relative Humidity: | ≤90% |
Rated Power: | 80w | Voltage: | AC 220v, 110v |
High Light: | automatic barrier gate,vehicle barrier gate |

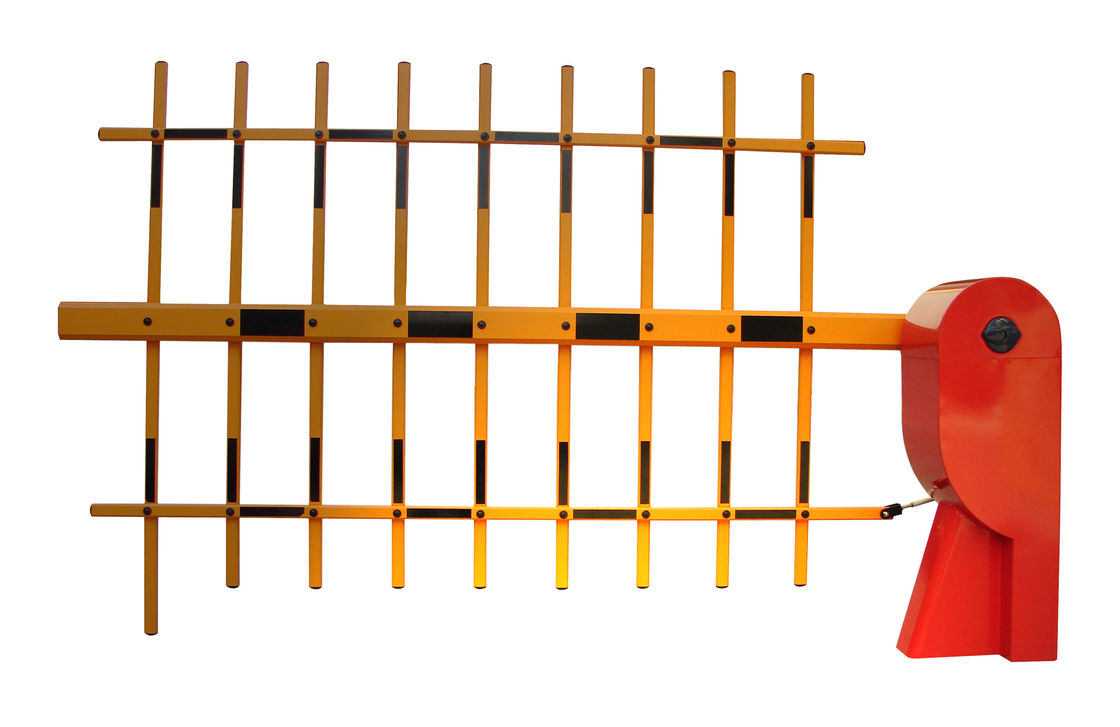

Automatic Traffic Barrier 3 Fence Arm With Aluminum Motor , Folding And Fence Beam
Specifications:
Automatic Barrier gate:
1. automatic, heavy duty,
2. compatible with parking namagement system
3. high speed
intensive used
Functions & Features
1) Manual release
2) Machine core with compression spring, effectively avoids the accidents caused by spring breaking
3) Die-casting aluminum alloy motor, precision and good at thermal radiating
4) Motor cooling fan, solving the problem of heat-protection
5) Double safety limit switches (photoelectricity limit switch/motor memory sensor)
6) Reversing on obstacle
7) Auto-closing
8) Support the INFRARER PHTOCELL for anti-bumping function (optional)
9) Support the external and internal VEHICLE LOOP DETECTOR (optional)
10) Traffic light interface
11) Wire control (switch signal)/ Remote control (418MHZ)
12) RS485 communication module (optional)
Technical Data:
Running time: 6s
Boom type: 3 fence arm
Max Boom length: 5 meters
Boom dimension (WxH): 45x100mm
Boom weight: 9kg
Voltage: 220V ± 10%, 110V ± 10%
Frequency: 50/60Hz
Motor voltage: 220V
Power: 120W
Working temperature: -40~75
Protection grade: IP44
