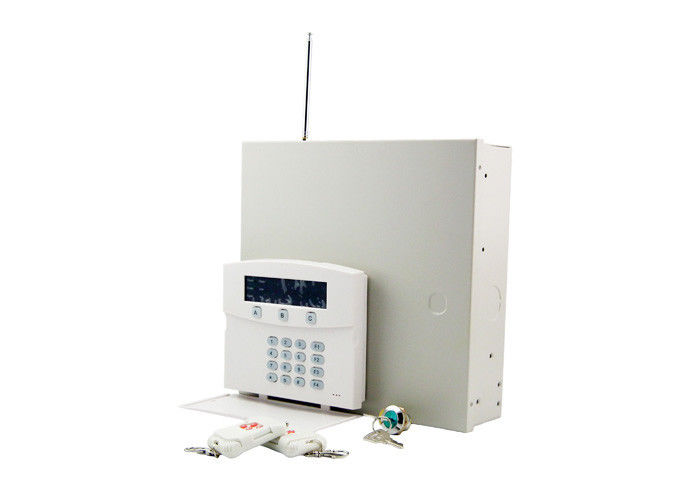

Alarm Center Net Connected Alarm Control Panels for Home Alarm System

Alarm Center Net Connected Alarm Control Panels for Home Alarm System, Measuring 262 x 265 x 75mm, 40mA Current

Features:

With 6 to 8 and 16 completely programmable zones and 6, 8 and 16 user passwords

Connected with alarm center net, when alarm is triggered, it can automatically dial fixed telephone number or mobile phone number or number of police station (not with record function)

Arm/disarm or programming can be performed by keypad operating: number of call in/out address code, password, alarm delay time, arm/disarm mode can be set at random

Compatible with all primary alarm and communication format, including 4 + 2, FSK, ademco contact Id and more in order to connect various digital receiver in alarm centers

Control panel can be remote controlled

Flexible collocation: can connected with foreign or domestic motion detectors, emergent buttons, jump switch, gas detector, smoke detector etc according to different requirements

Specifications:

Zones: 6, 8 and 16

Operating power: 16.5V AC power anti polarity protection

Response time: 10 to 500 minutes (programmable)

Loop response time: 5 to 75 minutes (programmable)

Power consumption stand by: 100mA

Dial-up: 140mA

Operating environment: 4 to 60ºC

Relevant humidity: <95% RH

Keypad operating current: 40mA

Dimensions: 262 x 265 x 75mm
