SZ09 wireless infrared intrusion detector / smart home wireless infrared detector / zigbee wireless data acquisition system


Brand: SHUNCOM
Transmission distance: 100 to 1, 000 meters
Transfer Mode: Transparent,  instruction format
Transmit Power: 3/18/25 (dbm)
Wireless Frequency: 2.4G ISM band global free
Channel mode: 16-channel
Input voltage: battery-powered

Features
Main features: combustible gas detection,  ZIGBEE for networking via wirelesstransmission;
Wired communication: RS485;
Wireless powerful: with relay route and terminal equipment;
Communication distance: maximum transmission distance of 2000 meters line of sight;
Anti-interference ability: 2.4G DSSS spread spectrum technology;
485 Application flexibility: transparent mode or command format for transmission, the maximum baud rate of 115200;
Flexible transmit mode: transmit or broadcast destination address to send mode selectable;
Flexible node types: the central node, routing nodes,  terminal nodes can be arbitrarily set;
Networking capability: Star network,  tree network, chain network,  mesh network;
Network capacity: 16-channel selectable,  65535 Network ID can be set;
Manageability: with a unified network management functions;
Flexible data acquisition: PC regularly active report or inquiry;
Industrial environment applications.

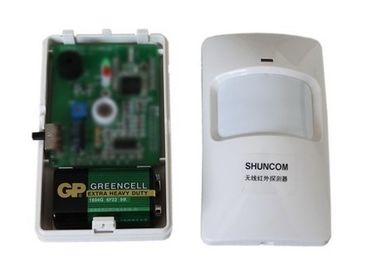

Wireless infrared detector
Detection range: up to 9 m
Detection angle: 110 ° wide-angle
Mounting height: 1.5 to 2.5 m
Run Indication: Green LED
Alarm Indication: Red LED
Communication Distance: barrier between the nodes 100 m / 2000 m
Operating temperature: 0 ℃ -50 ℃
Storage temperature: -40 ℃ -70 ℃
Humidity: Maximum 95% RH non-condensing
Product Size: W 60 X 140 X 41mm High
