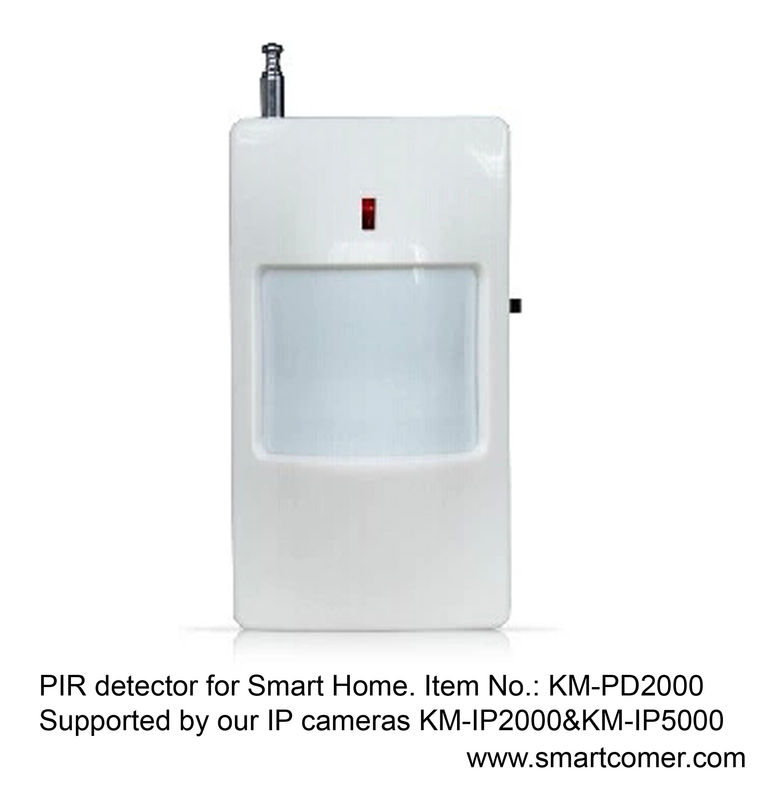

PIR Alarm Detector

433MHz Wireless Home GSM Alarm / PIR Alarm Detector / Burglar Alarms for wifi ip cameras

This product is a high stability wireless passive infrared detector(PIR sensor). It uses advanced Signal processing technology, provides high performance for detection and anti-false alarm. When an intruder is going through the detection area, the detector will automatically detect the activities of the human body in the region. If there is a dynamic phenomenon, it sends the alarm signal to the control host. This product is suitable for family residential district, residential villas, factories, shopping malls, warehouses, office buildings and other places for safe guard.

Power Requirements: DC9V(battery not including)
Power Requirements: 7mA~8mA (While sending)
Power Requirements: 45uA(While monitor)
Operating Freqency: 433Mhz
Angle detection between upper and lower: 60°

Angle detection between left and right: 110°
Bracket Adjustable Angle: -45° to +45°(Horizontal line)
Bracket Adjustable Angle: -15° to +45°(Vertical line)
Response Time: 6s
Coding Type: Fixed Code

Installation: wall mounting or wall corner mounting

Working temperature: -10℃-+50℃

Ambient humidity: 5%~95%RH

Product size: 107*56*39.5mm

Shell Colour: White

Installation:

When installing, you choose the favorable positions according to the environment. The lens is faced to the required surveillance locations. The installing height should be 2~2.5 meters above the ground. Pull out the antenna of the movement detector. Push down the power switch of the movement detector to position "on". After 60 seconds delay, the movement detector will enter the automatic detection state. Anybody movement within detection, the movement detector will send alarm message to the main unit.

1. It should be avoided to be installed in the outdoor, for example, the places where pets/rotating objects come and go, the places around air conditioning or the heat source machine, the place where the sunshine direct to.
2. the mounting surface should be strong, and no vibration.
3. The detector is installed in the place where the intruder is easy to pass.
4. the detector bracket is firmed with screws on the wall.
5. the detector will be hung up on the bracket.

2, product testing

Connected to the power, the LED light indicates a second, then the detector will be into the self-test state, self check time is about 30 seconds. After 30 seconds, the detecor will be into the normal state of monitoring. The tester should walk within the detection range, and the LED indicator light is on, it means that the detector is in the alarm state.
